Lightway 3
Floor Lamp - Floor Standing
The dash floor lamp can generate a flawless square distribution ideal for various lighting applications. This luminaire combine high-quality lighting performance with minimalistic trimless design. The dash floor lamp specially-designed reflectors of complex micro-faceted surfaces ensure an even color mixing and ultimate visual comfort (glare free).
- Clean square light distribution from 0.98 inches round aperture reflectors. The optimal beam angle over field angle ratio offers a highly-uniform horizontal surface
- Flexibility of mounting height with 3 beam angles
- Homogeneous color mixing within one reflector
Product Specifications
- Ambient lighting product with extruded aluminum body.
- Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
- Used in indoor environments, floor standing stone, concrete, metal or wood surfaces.
- Width of 0.1ft, height of 0.2ft and length ranging from 1 to 9.8ft with an increment of 1ft.
- Delivered luminous output from 107lm/ft to 549lm/ft.
- Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
- Color rendering index CRI 90+.
- Light emission square beam: 36°, 50° and 60°.
Polar Curves
Narrow Beam 36°
Medium Beam 50°
Wide Beam 60°

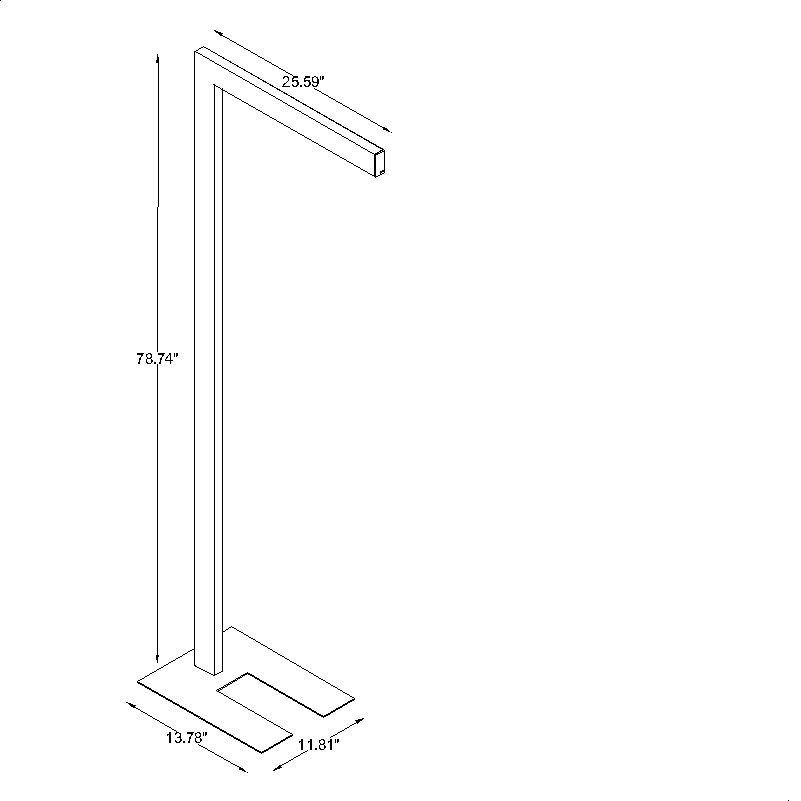

Section Drawing
