Lightway 5 - Outdoor

Floodlight Beam - Floor Fixed Bracket
The Lightway 5 Outdoor beam is developed for maximum performance in harsh environmental conditions. Made from extruded aluminum, this IP66 element benefits from a wide variety of outputs. The Beam compatible with a wide array of beam angles, generating a powerful overall lighting effect.
The fixture is available with an aluminum anti glare shield that gives control over the light for increased visual comfort.
  • Diverse options of beam angles: very narrow, narrow, medium, wide and elliptic.
  • Delivers High levels of light
  • Integrates with any architecture
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, floor mounted on stone, concrete, metal or wood surfaces.
  • Width of 50mm, height of 65mm and length ranging from 300 to 1200mm with an increment of 300mm.
  • Delivered luminous output per meter from 1200lm to 3400lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K.
  • Color rendering index CRI 90+.
  • Light emission beam: 30°, 45°.
Polar Curve
Wide Beam, 45° / LOR: 50.1%
Medium Beam, 30° / LOR: 64.2%
Medium Beam, 30° / LOR: 79.5%
Wide Beam, 45° / LOR: 70.5%
Medium Beam, 30° / LOR: 52.55%

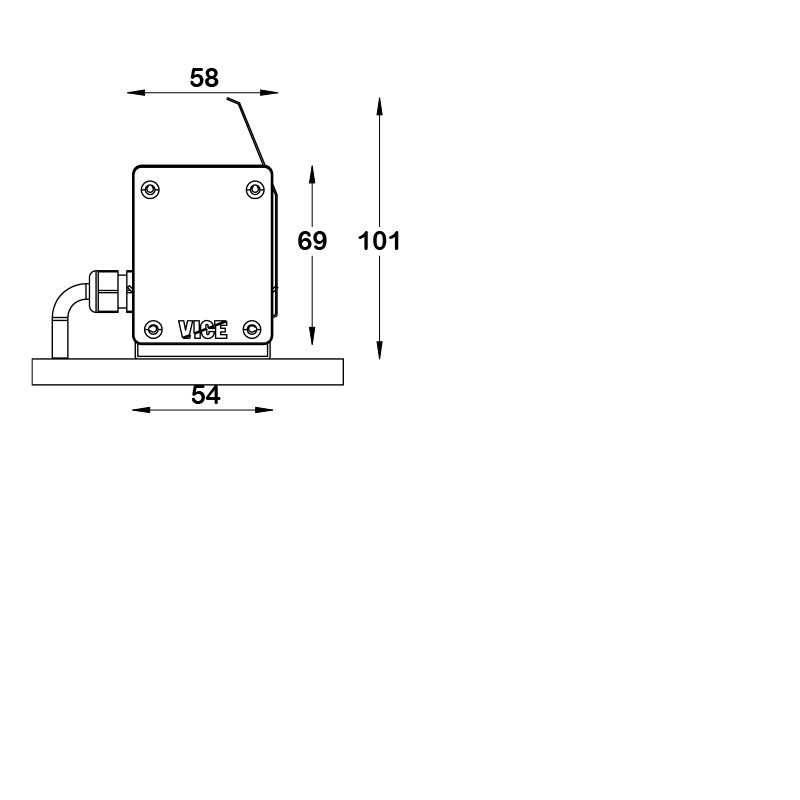

Section Drawing
