Lightway 5
Opal - Pendant Direct
The Lightway 5 PMMA Opal diffuser is part of a configurable system of linear LED luminaires providing flexible solutions for all indoor applications. This common diffuser offers powerful lighting and excellent light transmission with high diffusion and homogeneity.
- Superior optical transmission with no visible LED hotspots. Perfect Lambertian distribution for a soft light effect
- Wide, even levels of illumination
- High angle distribution to illuminate adjacent walls
- Great color mixing capability
Product Specifications
- Ambient lighting product with extruded aluminum body.
- Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
- Used in indoor environments, pendant from stone, concrete, metal or wood surfaces.
- Width of 0.2ft, height of 0.3ft and length ranging from 1 To 9.8ft with an increment of 1ft.
- Delivered luminous output from 290lm/ft to 1280lm/ft.
- Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
- Color rendering index CRI 90+.
Polar Curves
Opal

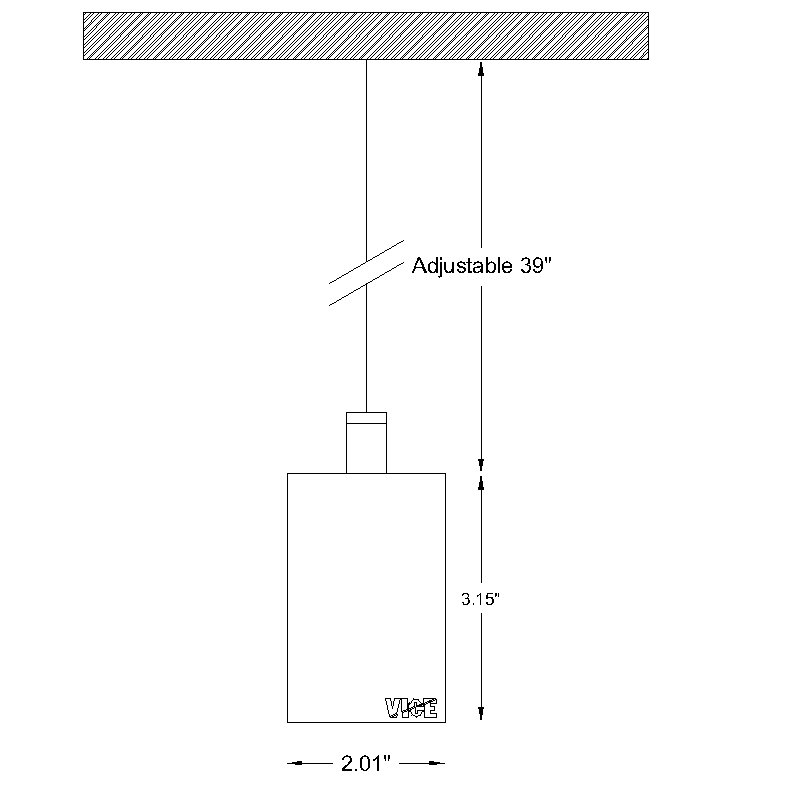

Section Drawing
