Lightway 5 - Outdoor

Opal - Extended Adjustable Bracket
The Lightway 5 outdoor opal is developed for homogenous lighting in harsh environments. This IP66 element benefits from a wide variety of outputs. The diffuser offers powerful lighting and excellent light transmission with high diffusion.
The fixture is available with an aluminum anti glare shield that gives control over the light for increased visual comfort.
  • Superior optical transmission with no visible LED hotspots
  • Wide, even levels of illumination
  • High angle distribution to illuminate vertical & horizontal surfaces
  • Great color mixing capability
  • Integrates with any architecture.
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, surface mounted on stone, concrete, metal or wood surfaces.
  • Width of 50mm, height of 65mm and length ranging from 300 to 1200mm with an increment of 300mm.
  • Delivered luminous output per meter from 1200lm to 5400lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K.
  • Color rendering index CRI 90+.
Polar Curves
Opal with Shield

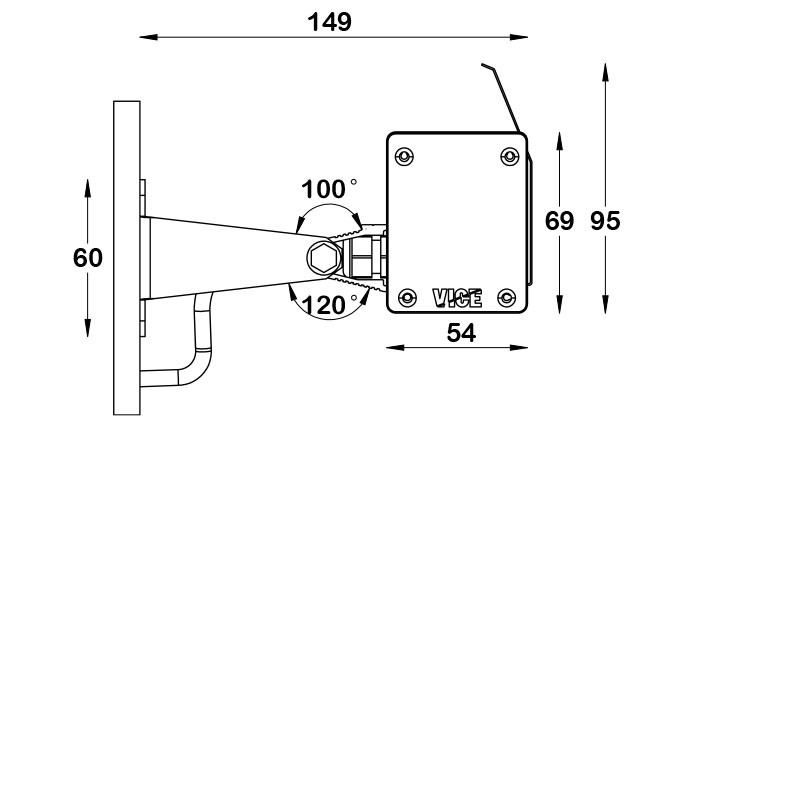

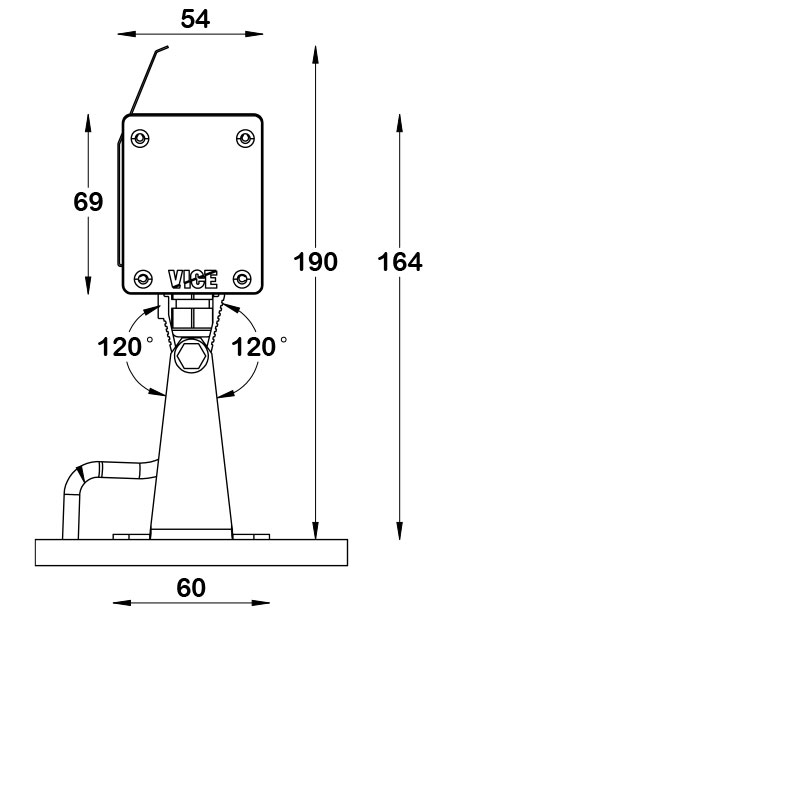

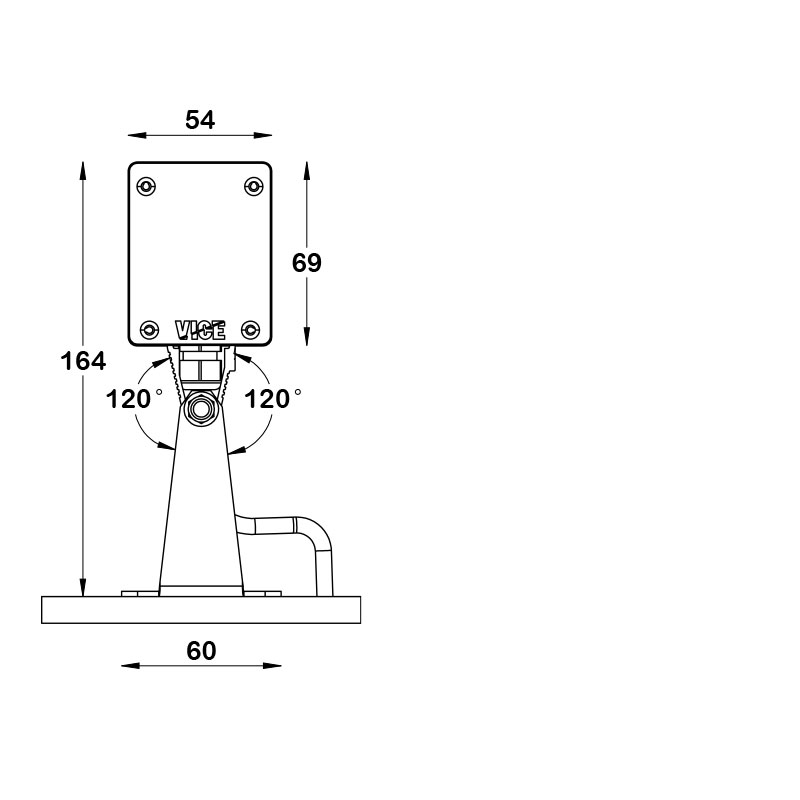

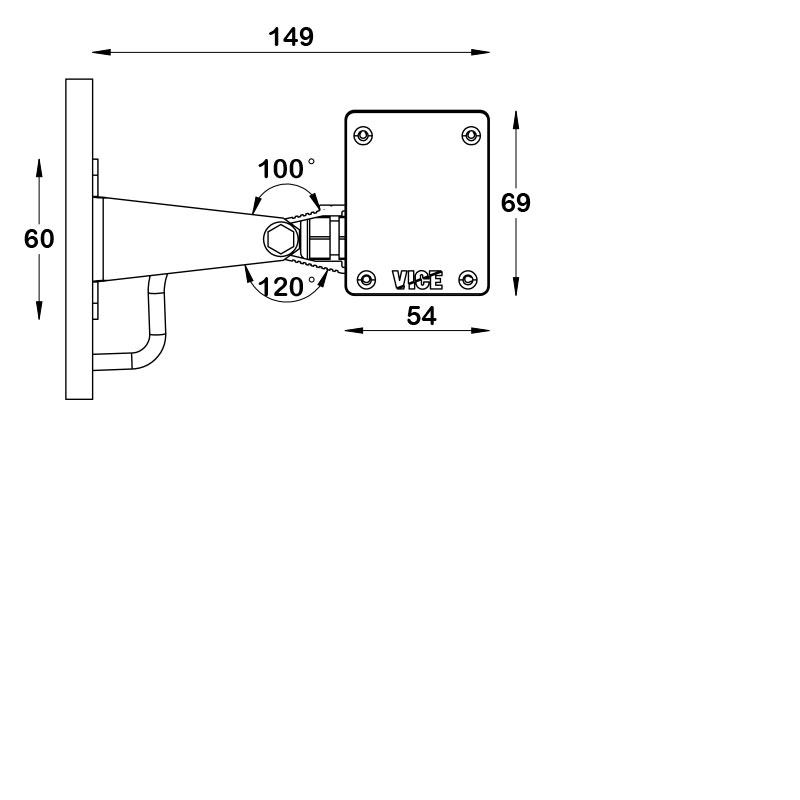

Section Drawing
