Lightway 5

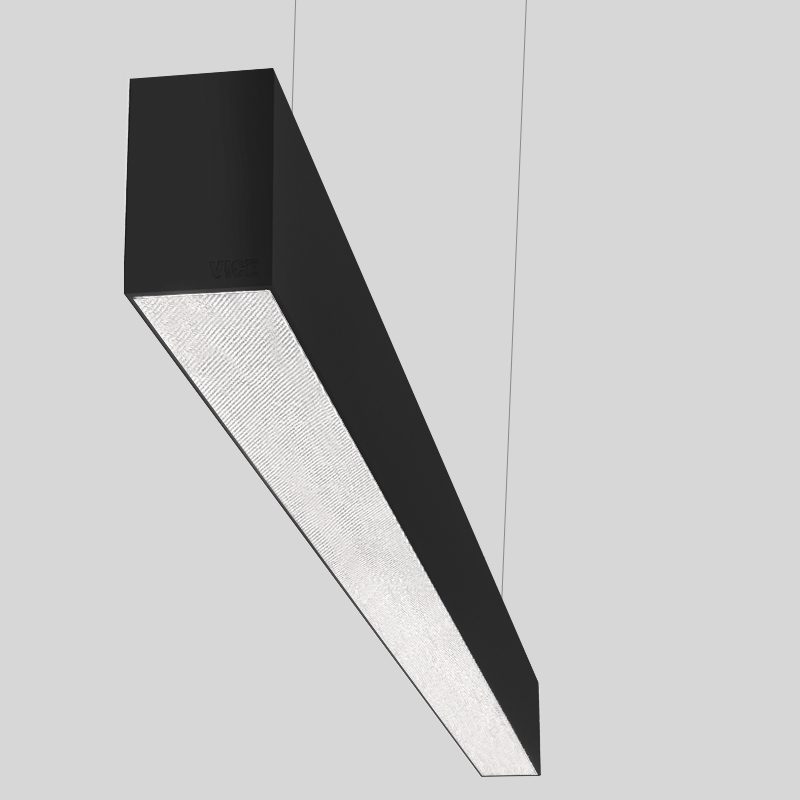

Prismatic Opal - Pendant Direct
The Lightway 5 Diamond-like Prism structure provides a glare reduction . This diffuser offers a very high light transmission making it ideal for workstations’ applications: offices, libraries, classrooms, hospitals, etc.
• High efficiency luminaire: 70% LOR
• Homogeneous glare reduction in all C-levels
Product Specifications
- Ambient lighting product with extruded aluminum body.
- Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
- Used in indoor environments, pendant from stone, concrete, metal or wood surfaces.
- Width of 51mm, height of 80mm and length ranging from 300 to 3000mm with an increment of 300mm.
- Delivered luminous output per meter from 900lm to 3050lm.
- Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
- Color rendering index CRI 90+.
Polar Curve

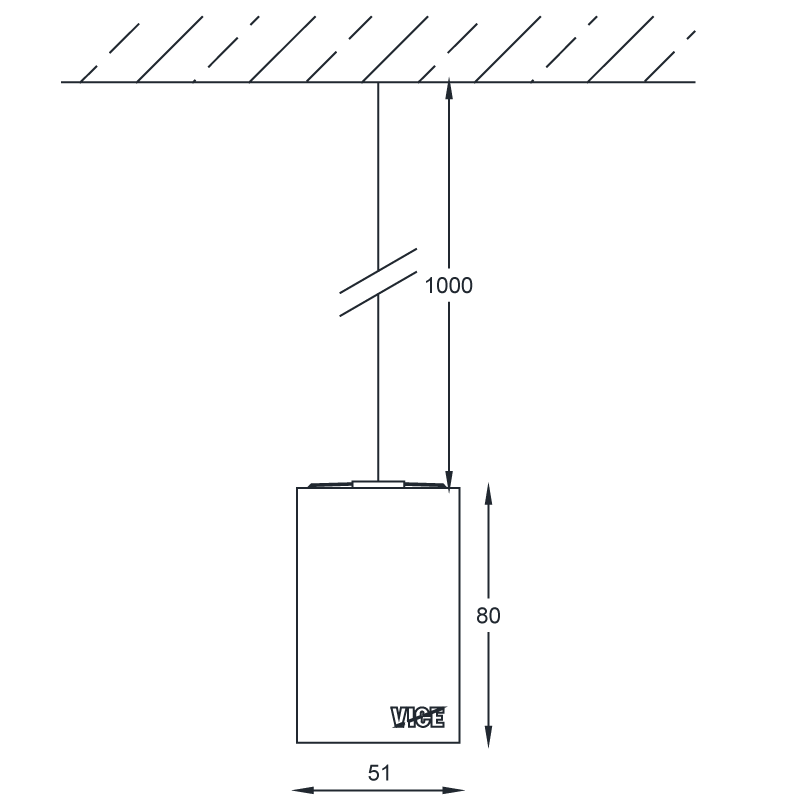

Section Drawing
