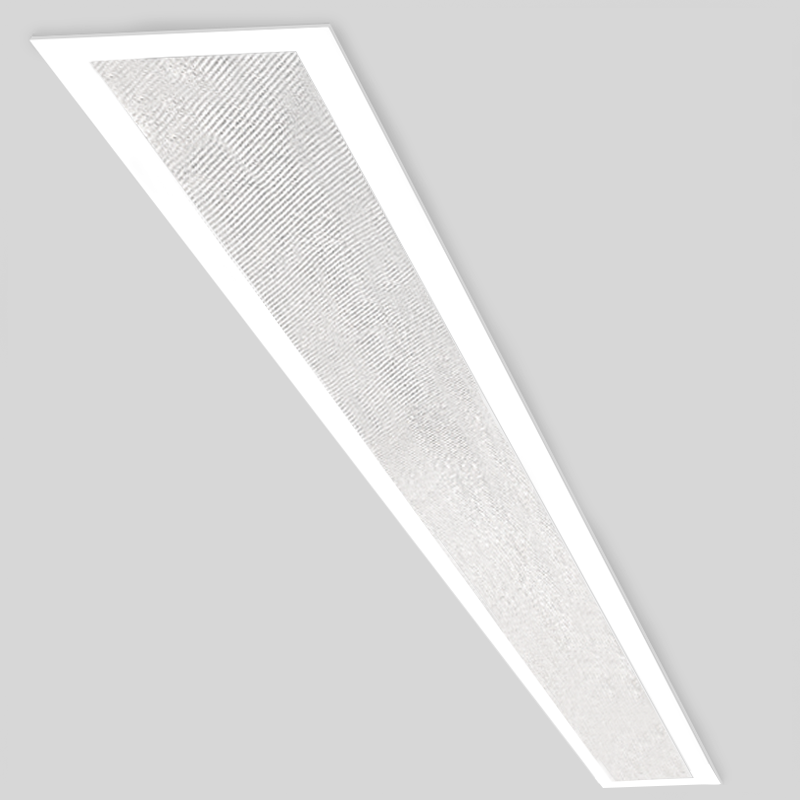

Lightway 5

Prismatic Opal - Recessed With Trim
The Lightway 5 Diamond-like Prism structure provides a glare reduction. This diffuser offers a very high light transmission making it ideal for workstations’ applications: offices, libraries, classrooms, hospitals, etc.
  • High efficiency luminaire: 70% LOR
  • Homogeneous glare reduction in all C-levels
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, recessed with trim in gypsum, metal or wood surfaces.
  • Width of 0.2ft, height of 0.3ft and length ranging from 1 To 9.8ft with an increment of 1ft.
  • Delivered luminous output from 274lm/ft to 930lm/ft.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.
  • Cutout: length - 0.5 inches / width 2.2 inches / depth 3.9 inches

Polar Curves
polar_curves
Opal Prismatic
Section Drawing
section_drawing
