Lightway 6 - Outdoor

Asymmetrical Lens - Inground Deep

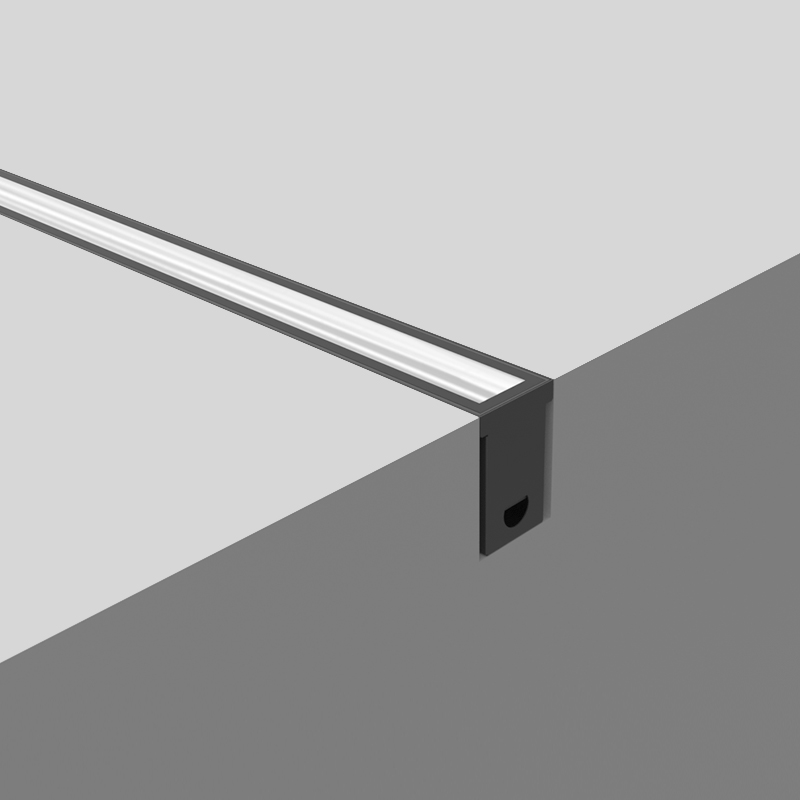

The Lightway 6 Inground asymmetrical linear lens is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, this IP67 element provides homogeneous distribution of light over vertical surfaces while achieving a very high output, making it ideal for high ceiling lighting applications.
• The flush lens delivers the best wall uniformity. Vertical light uniformity (1:3)
• High output, ideal for vertical surfaces (over 4 meters high lighting applications)
• Wide lateral illumination with minimal cut-off
• 45cm of side walls to minimize unwanted light spillage
• IK10

Build Your Product Spec Sheetdownload
Product Specifications
  • Washer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, recessed deep in concrete surface.
  • Width of 90mm, depth of 133mm and length ranging from 300 to 1500mm with an increment of 300mm.
  • Delivered luminous output per meter from 900lm to 4000lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K
  • Color rendering index CRI 90+.
  • IK10


Polar Curves
polar_curves
LOR: 60.83%
Section Drawing
section_drawing

Mounting Ratio
mounting_ratio

Setback from the wall is defined by wall texture and height. Consult factory for optimal setback according to your project conditions.
