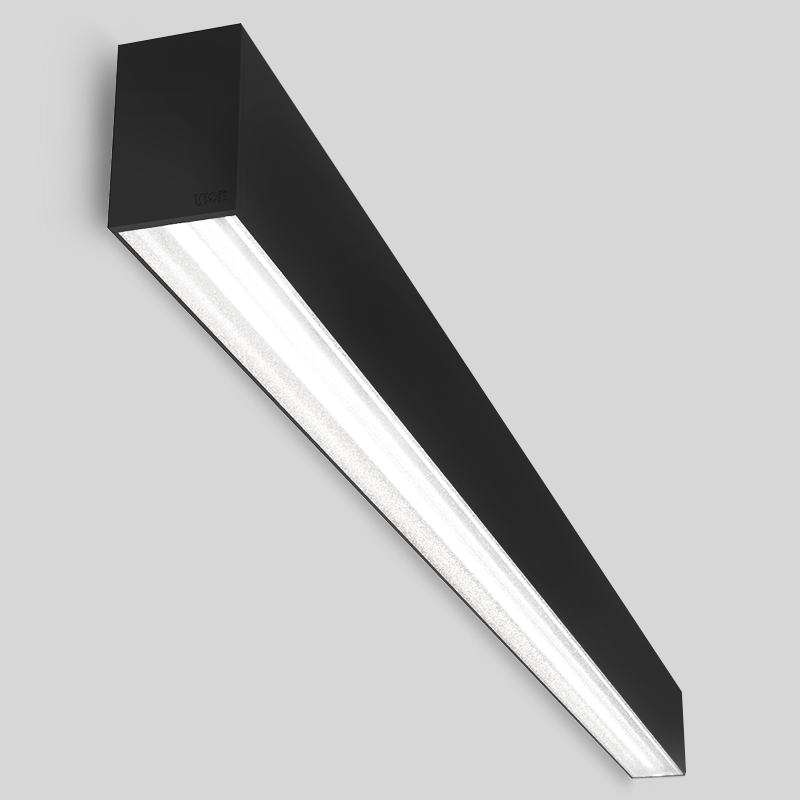

Lightway 6
Elliptical Narrow Lens - Wall Mounted Direct
The Lightway 6 - with its powerful and efficient Elliptical Narrow Lens - provides homogeneous vertical surface grazing and works perfectly on high vertical surfaces for both indoor and outdoor applications.
- Wide lateral beam spread for high ceiling applications, over 4m height. Emphasizes contrast effects on textured surfaces
- 5 to 10cm from the edge of fixture to the surface of the wall
- Install to within 45cm of side walls to minimize spill
Product Specifications
- Grazer lighting product with extruded aluminum body.
- Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
- Used in indoor environments, wall mounted on stone, concrete, metal or wood surfaces.
- Width of 66mm, height of 103mm and length ranging from 300 to 3000mm with an increment of 300mm.
- Delivered luminous output per meter from 1000lm to 4450lm.
- Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
- Color rendering index CRI 90+.
Polar Curve
Section Drawing
