Lightway 6 - Outdoor

Elliptical Narrow Lens - Inground Deep
The Lightway 6 Inground elliptical narrow lens is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, this IP67 element benefits from a wide variety of outputs. It provides homogeneous vertical surface grazing and works perfectly on high vertical surfaces.
• Wide lateral beam spread for high ceiling applications, over 4m height. Emphasizes contrast effects on textured surfaces
• 5 to 10cm from the edge of fixture to the surface of the wall
• Install to within 45cm of side walls to minimize spill
• IK10

Build Your Product Spec Sheetdownload
Product Specifications
  • Grazer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, recessed deep in concrete surface.
  • Width of 90mm, depth of 133mm and length ranging from 300 to 1500mm with an increment of 300mm.
  • Delivered luminous output per meter from 1000lm to 4450lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K
  • Color rendering index CRI 90+.
  • IK10


Polar Curves
polar_curves
LOR: 67.95%

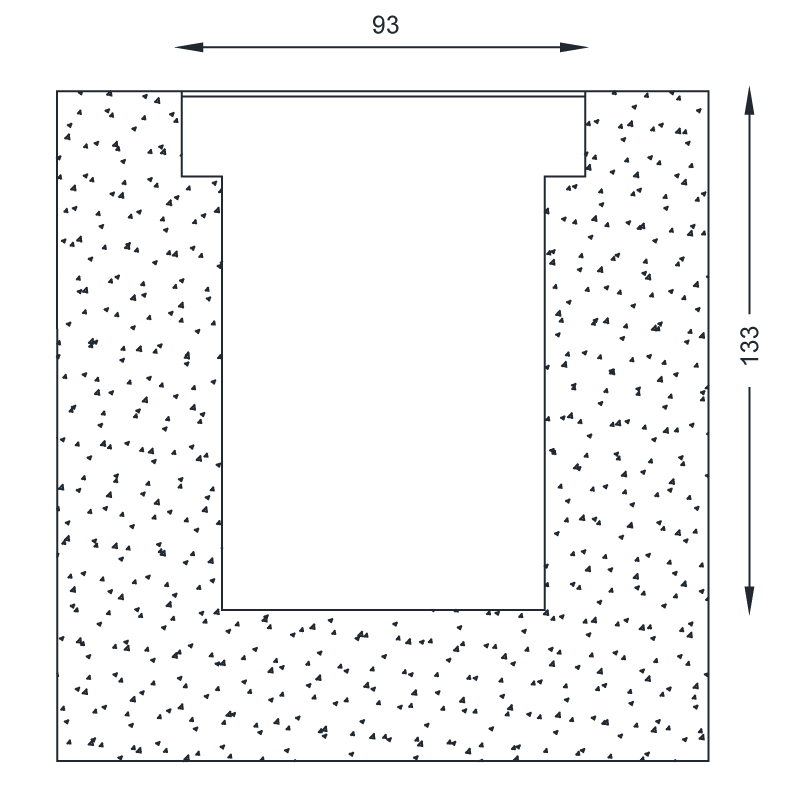

Section Drawing
section_drawing

Mounting Ratio
mounting_ratio

Setback from the wall is defined by wall texture and height. Consult factory for optimal setback according to your project conditions.
