Lightway 6

Grazing Baffles - Pendant Direct / Indirect
The Lightway 6 Direct/Indirect linear system offers numerous combinations of optics and output options. A well-lit ceiling improves the look of the workspace without having to compromise on the efficiency.
The grazing baffles, for direct emission, totally control glare from both the longitudinal and transversal sides of the profile, achieving a powerful effect while emphasizing rough-textured surfaces of great height.
  • Best-in-class vertical surface grazing. Scallop-free lighting from zero start point of vertical surfaces
  • Glare-free in both longitudinal and transversal sides
  • 2 To 3.9 inches from edge of fixture to surface of the wall depending on its height and surface. Use of continuous fixtures to within 3.9 inches of side walls
Product Specifications
  • Grazer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, wall mounted on stone, concrete, metal or wood surfaces.
  • Width of 0.2ft, height of 0.3ft and length ranging from 1 to 9.8ft with an increment of 1ft.
  • Delivered luminous output from 183lm/ft to 366lm/ft.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.
  • Light emission beam: 8° and 16°.

Direct Polar Curve
polar_curves
Narrow Beam, 15°
/ LOR: 42.7%
Indirect Polar Curve
polar_curves
LOR: 74.8%

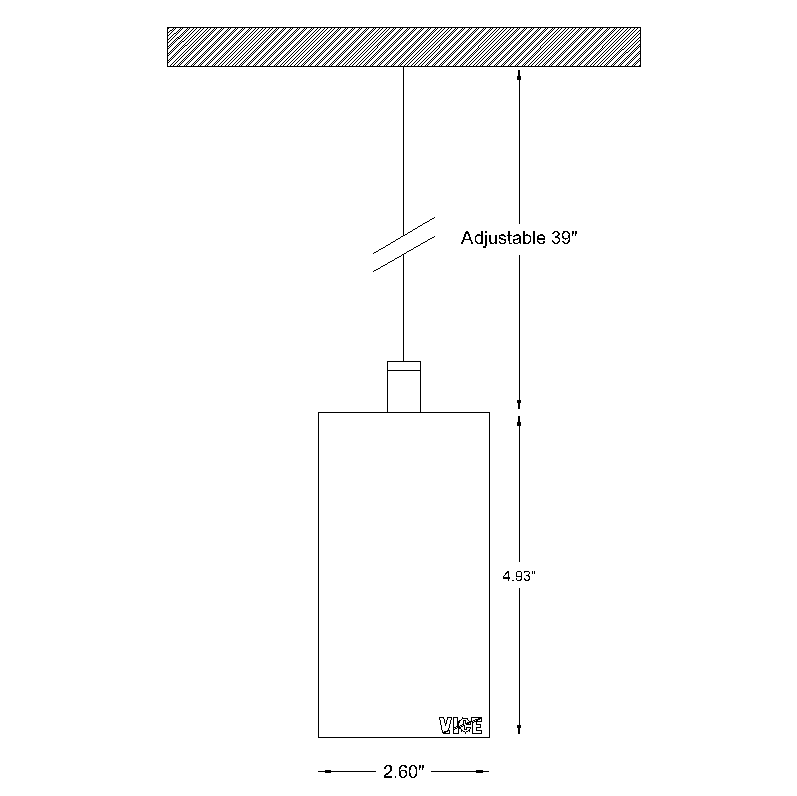

Section Drawing
section_drawing

Mounting Ratio
mounting_ratio

Setback from the wall is defined by wall texture and height. Consult our sales representative for optimal setback according to your project conditions.
