Lightway 6 - Outdoor

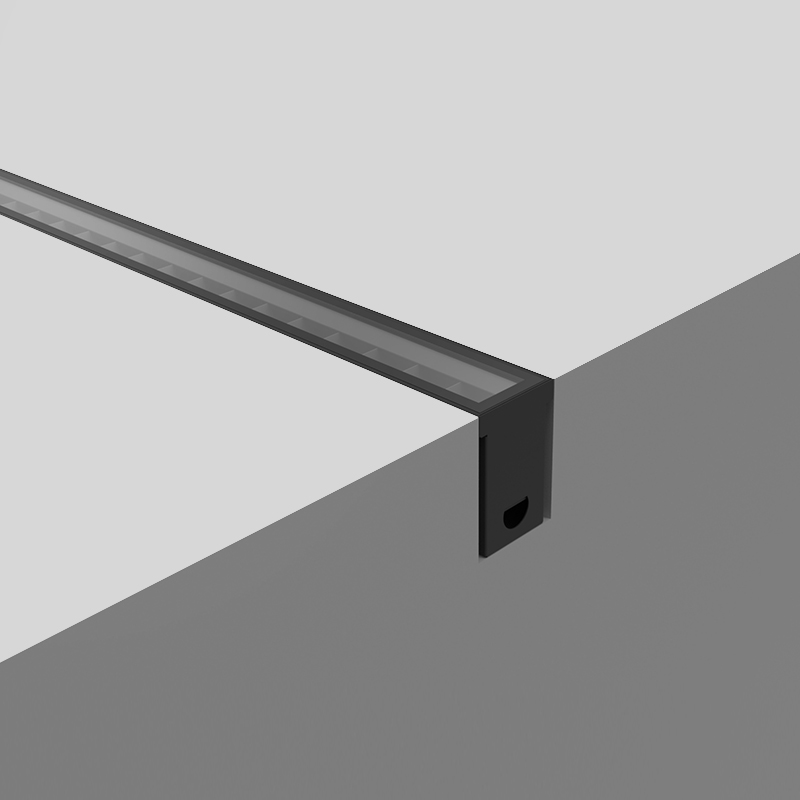

Grazing Baffles - Inground Deep
The Lightway 6 Inground grazing baffles is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, this IP67 element benefits from specially-designed aluminum optics totally glare free from both the longitudinal and transversal sides of the profile, achieving a powerful effect while emphasizing rough-textured surfaces of great height.
- Best-in-class vertical surface grazing, Scallop-free lighting from zero start point of vertical surfaces
- Glare-free in both longitudinal and transversal sides
- 5 to 10cm from edge of fixture to surface of the wall depending on its height and surface. Use of continuous fixtures to within 10cm of side walls
Product Specifications
- Grazer lighting product with extruded aluminum body.
- Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
- Used in outdoor environments, recessed deep in concrete surface.
- Width of 90mm, depth of 133mm and length ranging from 300 to 1500mm with an increment of 300mm.
- Delivered luminous output per meter from 450lm to 850lm.
- Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K
- Color rendering index CRI 90+.
- Light emission beam: 8° and 16°.
- Cutout: length + 3mm / width 93mm / depth 134.5mm.
Polar Curve

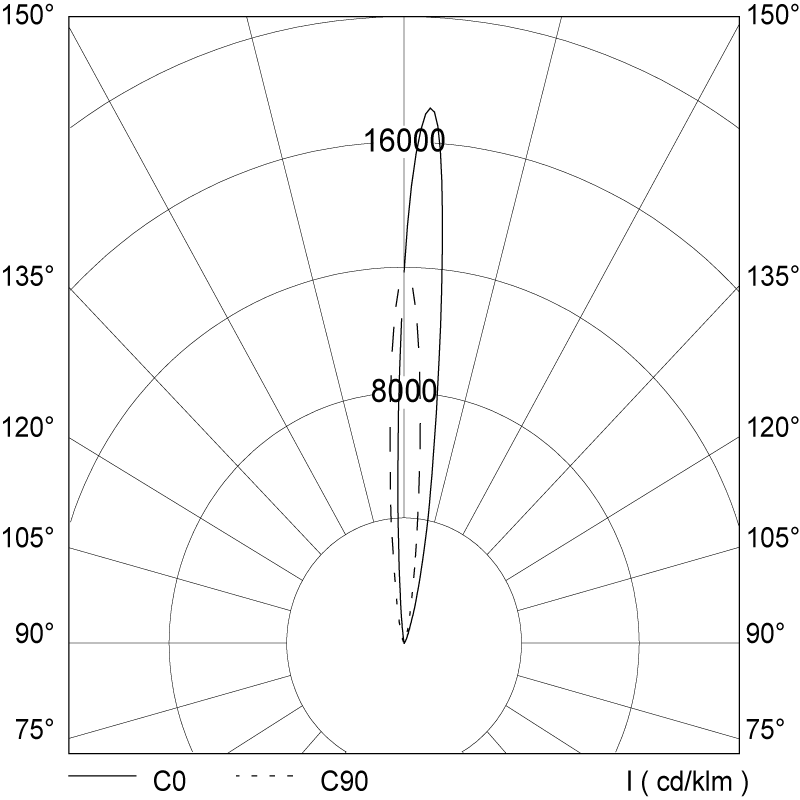

Narrow Beam, 8° / LOR: 26.3%
Narrow Beam, 15°
/LOR: 34.2%
/
Narrow Beam, 15°
/LOR: 25.25%
/

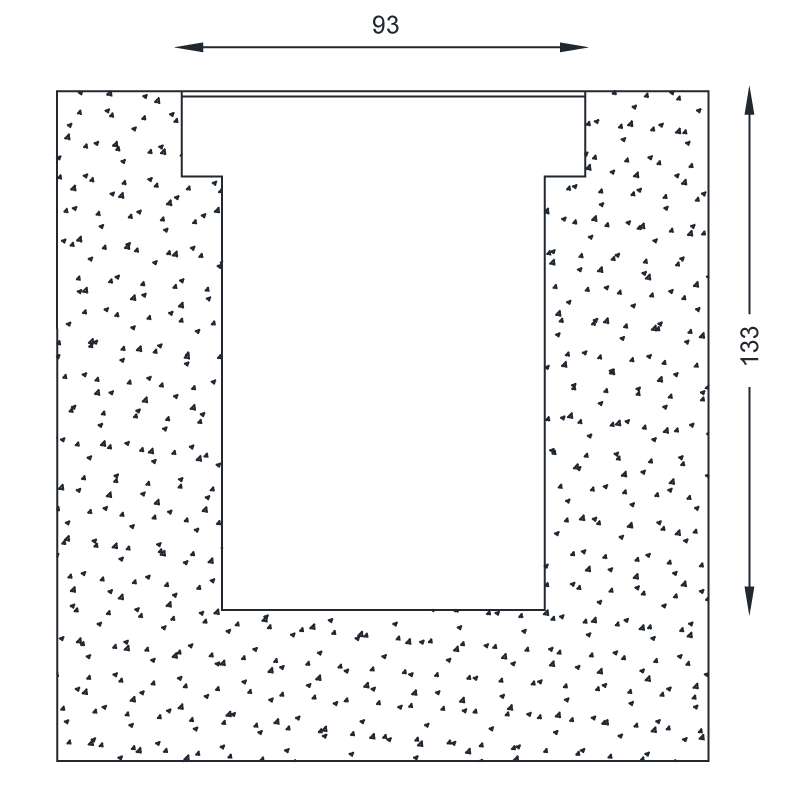

Section Drawing
Mounting Ratio
Setback from the wall is defined by wall texture and height. Consult our sales representative for optimal setback according to your project conditions.
