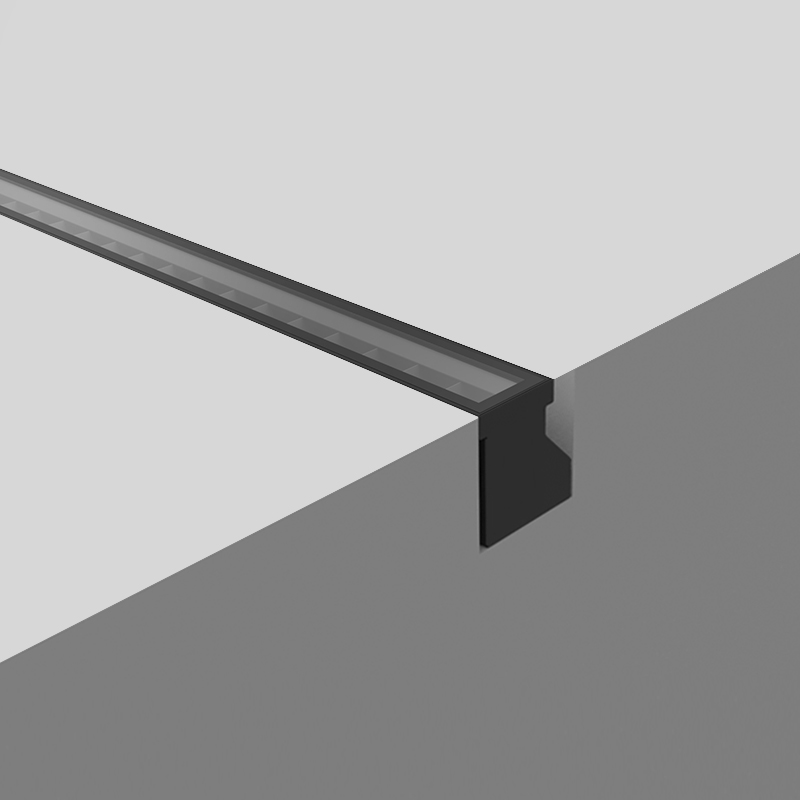

Lightway 6 - Outdoor

Grazing Baffles - Inground Shallow
The Lightway 6 Inground grazing baffles is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, this IP67 element benefits from specially-designed aluminum optics totally glare free from both the longitudinal and transversal sides of the profile, achieving a powerful effect while emphasizing rough-textured surfaces of great height.
• Best-in-class vertical surface grazing, Scallop-free lighting from zero start point of vertical surfaces
• Glare-free in both longitudinal and transversal sides
• 5 to 10cm from edge of fixture to surface of the wall depending on its height and surface. Use of continuous fixtures to within 10cm of side walls
• IK10

Build Your Product Spec Sheetdownload
Product Specifications
  • Grazer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, recessed shallow in concrete surface.
  • Width of 90mm, depth of 112mm and length ranging from 300 to 1500mm with an increment of 300mm.
  • Delivered luminous output per meter from 450lm to 850lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K
  • Color rendering index CRI 90+.
  • Light emission beam: 8° and 16°.
  • IK10


Polar Curves
polar_curves
Narrow Beam, 8° / LOR: 26.3%
polar_curves
Narrow Beam, 15°
/ LOR: 34.2%
Section Drawing
section_drawing

Mounting Ratio
mounting_ratio

Setback from the wall is defined by wall texture and height. Consult factory for optimal setback according to your project conditions.
