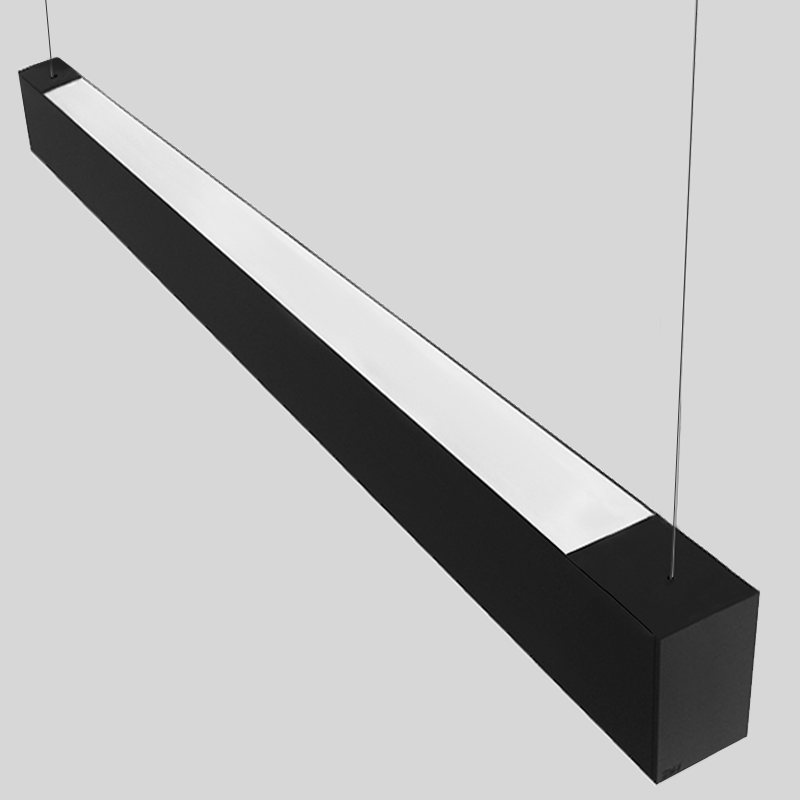

Lightway 6

Kick Reflector - Pendant Direct / Indirect
The Lightway 6 Kick Reflector provides a smooth distribution of light over vertical surfaces and its reflector helps reduce the aperture apparent size, therefore its surface luminance.
Its aluminum optic with an integrated diffuser is specially designed to reduce glare and increase illuminance levels while providing a uniform light distribution.
  • Exceptionally uniform wall washing, up to top of ceiling plane even when surface mounted
  • Even wall illumination up to 236.2 inches
  • Wide lateral illumination with excellent back light shielding
  • Setback ratio of 1:5
  • Continuous row mounting to within 17.7 inches of side walls to minimize unwanted light spillage
Product Specifications
  • Washer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, pendant from stone, concrete, metal or wood surfaces.
  • Width of 0.2ft, height of 0.3ft and length ranging from 1 to 9.8ft with an increment of 1ft.
  • Delivered luminous output from 213lm/ft to 960lm/ft.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.
Polar Curves
Kick Reflector

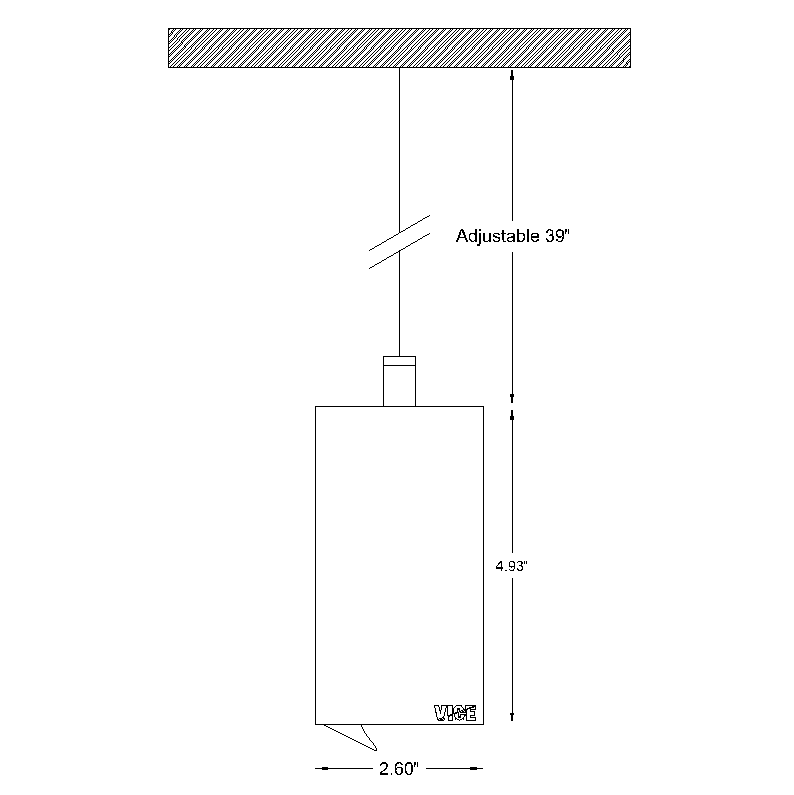

Section Drawing
Mounting Ratio
Setback from the wall is defined by wall texture and height. Consult our sales representative for optimal setback according to your project conditions.
