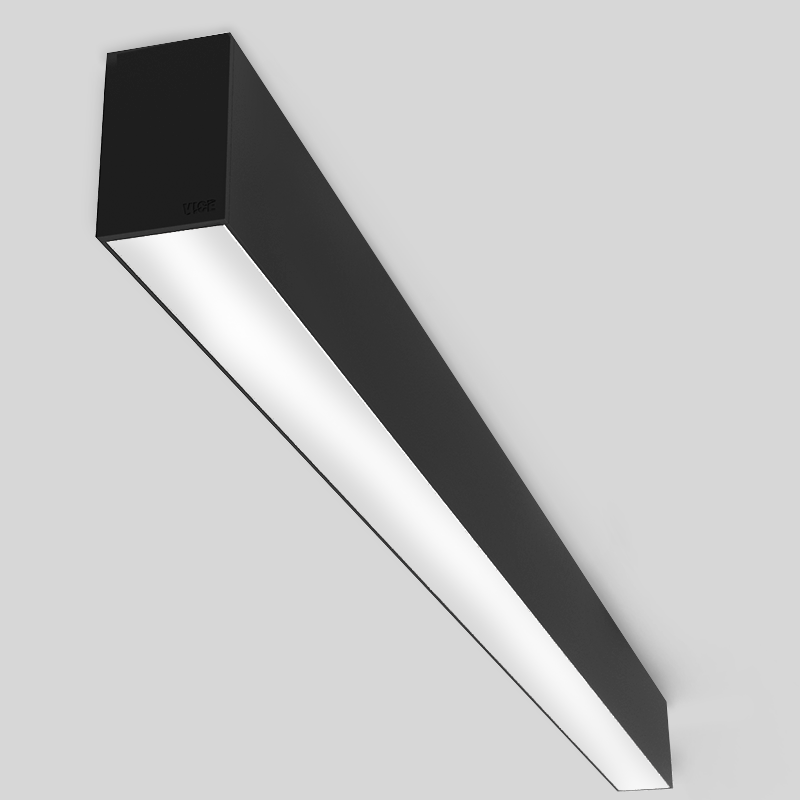

Lightway 6

Opal - Surface Mounted
The Lightway 6 PMMA Opal diffuser is part of a configurable system of linear LED luminaires providing flexible solutions for all indoor applications. This common diffuser offers powerful lighting and excellent light transmission with high diffusion and homogeneity.
•  Superior optical transmission with no visible LED hotspots. Perfect Lambertian distribution for a soft light effect
•  Wide, even levels of illumination
•  High angle distribution to illuminate adjacent walls
•  Great color mixing capability
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, surface mounted on stone, concrete, metal or wood surfaces.
  • Width of 66mm, height of 103mm and length ranging from 300 to 3000mm with an increment of 300mm.
  • Delivered luminous output per meter from 900lm to 4050lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.
Polar Curve
LOR: 74.8%
Section Drawing
