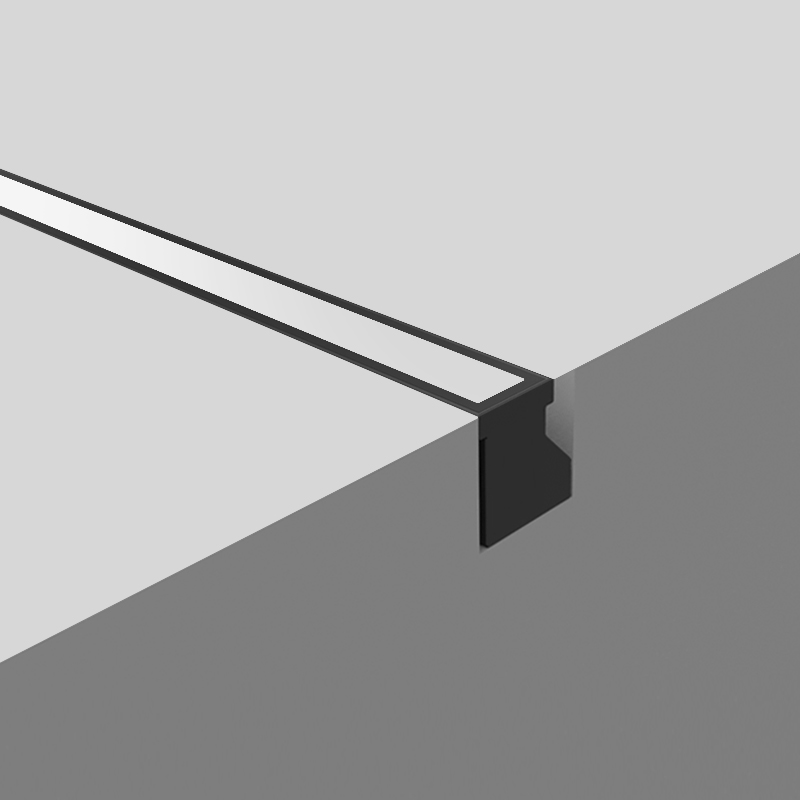

Lightway 6 - Outdoor

Opal - Inground Shallow
The Lightway 6 Inground opal is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, this IP67 element benefits from a wide variety of outputs. This common diffuser offers powerful lighting and excellent light transmission with high diffusion and homogeneity.
• Superior optical transmission with no visible LED hotspots
• Wide, even levels of illumination
• High angle distribution to illuminate adjacent walls
• Great color mixing capability
• IK10

Build Your Product Spec Sheetdownload
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, recessed shallow in concrete surface.
  • Width of 90mm, depth of 112mm and length ranging from 300 to 1500mm with an increment of 300mm.
  • Delivered luminous output per meter from 700lm to 3050lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K
  • Color rendering index CRI 90+.
  • IK10


Polar Curves
polar_curves
LOR: 46.28%
Section Drawing
section_drawing
