Lightway 6 - Outdoor

Beam - Inground Deep
The Lightway 6 Inground beam is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, this IP67 element benefits from a wide variety of outputs.
The Beam compatible with a wide array of beam angles, generating a powerful overall lighting effect.
  • Diverse options of beam angles: very narrow, narrow, medium, wide and elliptic
  • Delivers High levels of light
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, recessed deep in concrete surface.
  • Width of 90mm, depth of 133mm and length ranging from 300 to 1500mm with an increment of 300mm.
  • Delivered luminous output per meter from 650lm to 3500lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K.
  • Color rendering index CRI 90+.
  • Light emission beam: 8°, 16°, 30°, 45°, 10° x 54° and 15° x 36°.
  • Cutout: length + 3mm / width 93mm / depth 134.5mm.

Polar Curves
polar_curves
Beam Angle 15°
polar_curves
Beam Angle 30°
polar_curves
Beam Angle 45°
polar_curves
Beam Angle 10x54°
polar_curves
Beam Angle 15x36°
polar_curves
Beam angle 8°

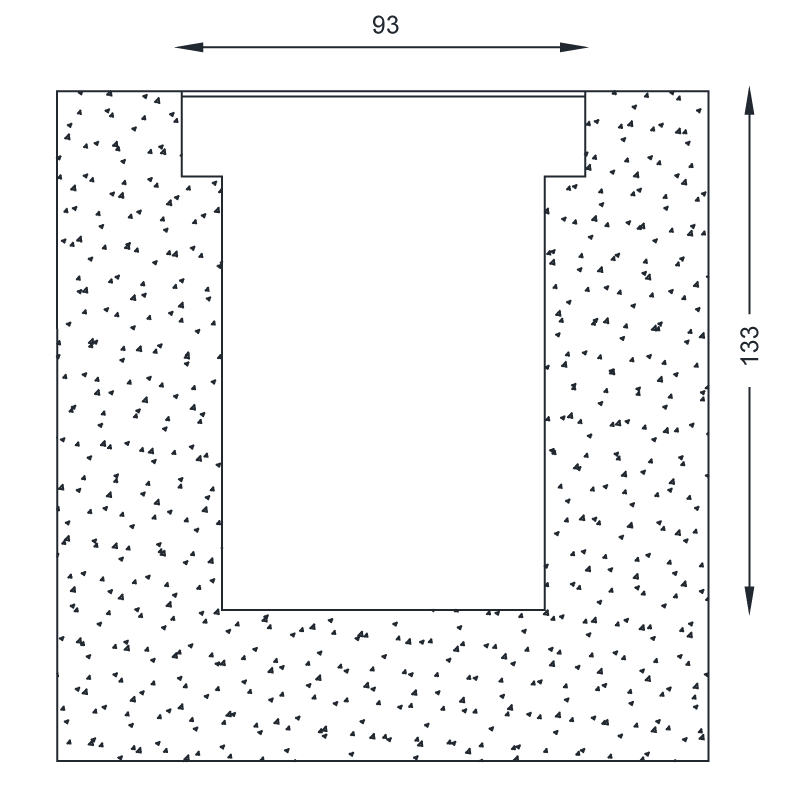

Section Drawing
section_drawing
