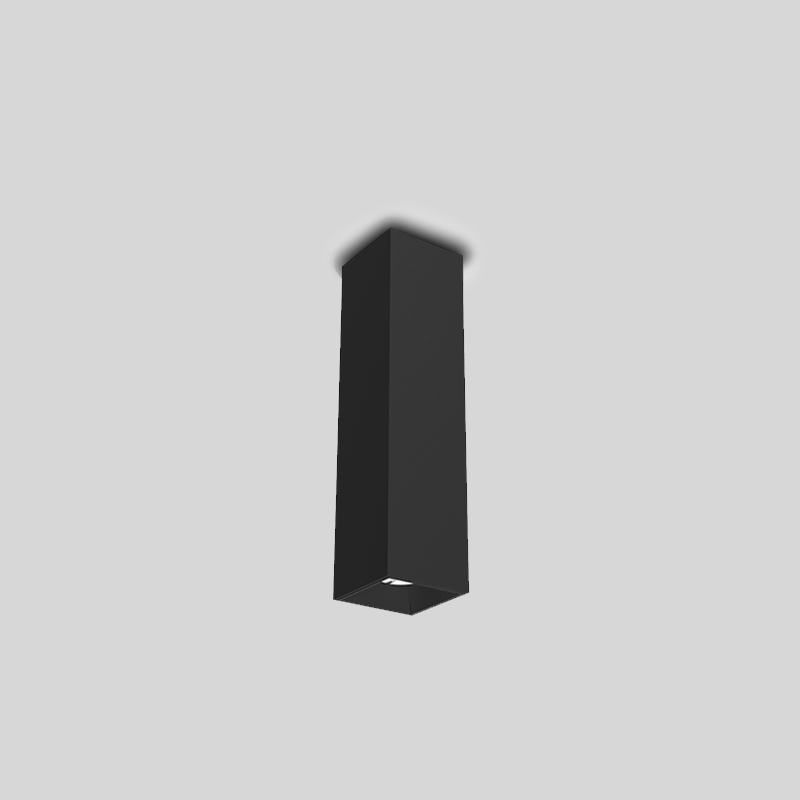

Stardrop

Darkway - Surface Mounted
The stardrop is quite adaptable to well integrate into the space ratio and requirements. The stardrop device can be either ceiling mounted or pendant. The number of spots can be modified in every unit. This product offers high visual comfort, ideal for residential and commercial spaces.
  • Clean square light distribution from 0.08 inches round aperture reflectors. The optimal beam angle over field angle ratio offers a highly-uniform horizontal surface
  • Flexibility of mounting height with 3 beam angles
  • Homogeneous color mixing within one reflector
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, surface mounted on stone, concrete, metal or wood surfaces.
  • Base of 0.1ft and a height of 0.7ft.
  • Delivered luminous output from 5lm/ft to 30lm/ft
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K.
  • Color rendering index CRI 90+.
  • Light emission square beam: 36°, 50° and 60°

Polar Curves
polar_curves
Narrow Beam 36°
polar_curves
Medium Beam 50°
polar_curves
Wide Beam 60°

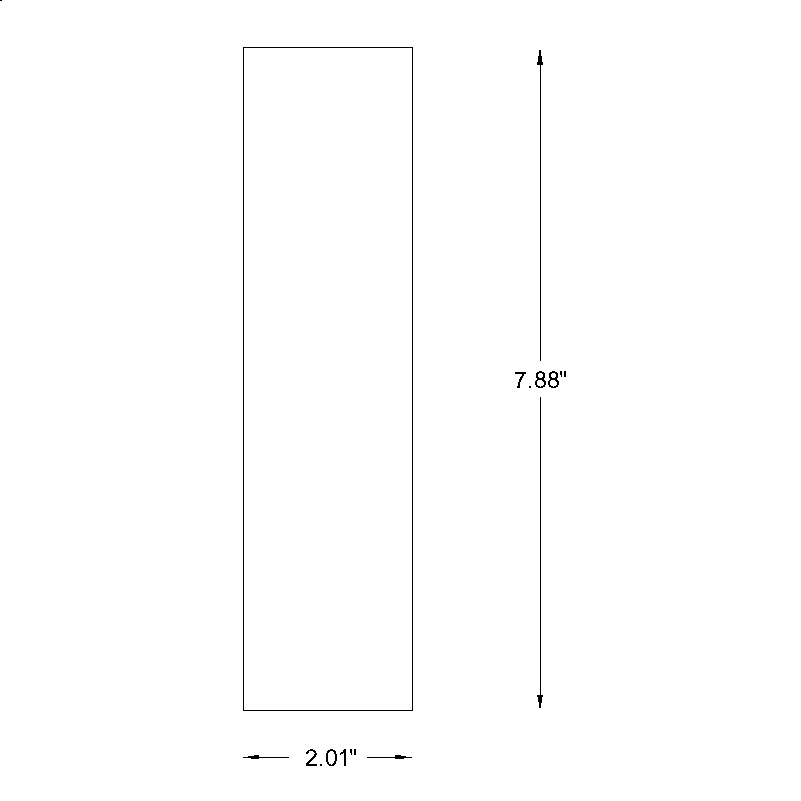

Section Drawing
section_drawing
