Zinc Bollard
Washer - Surface Mounted Anchorage
The bollard marks a breakthrough in horizontal illumination, as it offers a flawless, uniform distribution for all ground surfaces. It is suitable for illuminating defined areas and wide pathways.
This product can be mounted vertically or horizontally and has a tilt adjustment up to 90°, allowing designers to illuminate horizontal, sloped, and vertical surfaces alike.
Product Features:
This product can be mounted vertically or horizontally and has a tilt adjustment up to 90°, allowing designers to illuminate horizontal, sloped, and vertical surfaces alike.
Product Features:
- Homogeneous color mixing within one reflector
- IP 65
- True wall wash distribution. Vertical light uniformity (1:4)
Product Specifications
- Washer lighting product with extruded aluminum body.
- Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
- Used in outdoor environments, surface mounted on stone, concrete, metal or wood surfaces.
- Depth of 0.1ft, width of 0.3ft and height of 1.9ft, 2.5ft and 3ft.
- Delivered luminous output from 30lm/ft to 61lm/ft
- Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K,tunable white (2,700K - 5,000K), and warm dimming (2200K-3000K).
- Color rendering index CRI 90+.
Polar Curves
Cut-Off Washer

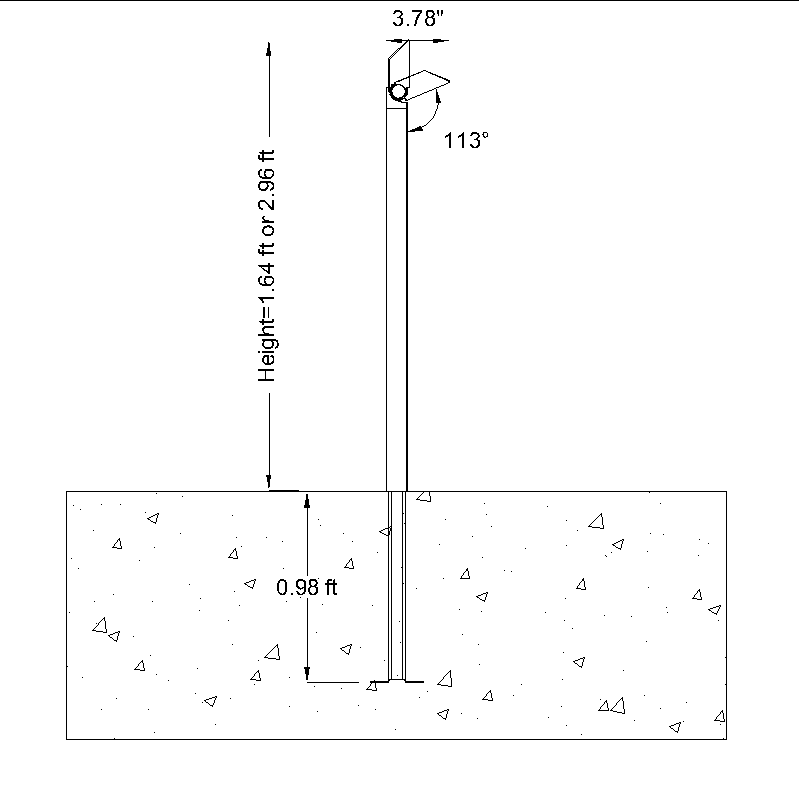

Section Drawing
Mounting Ratio
Setback from the wall is defined by wall texture and height. Consult our sales representative for optimal setback according to your project conditions.
