Zinc Ray

Floodlight - Surface Mounted
Zinc is designed to contrast with the existing blocky linear floodlights and spotlights. Where developers are trying to hide fixtures using additional architectural details to reduce their visual impact, it is time to display a performance tool without being apologetic. Zinc offers a high performance outdoor fixture with pleasing aesthetics and unobtrusive form.
Zinc line leaves minimal physical impact while blending smoothly within its environment. In spite the compact design Zinc luminaires can host different optics to serve different lighting situations.
This product can be mounted vertically or horizontally and has a tilt adjustment up to 90°, allowing designers to illuminate horizontal, sloped, and vertical surfaces alike.

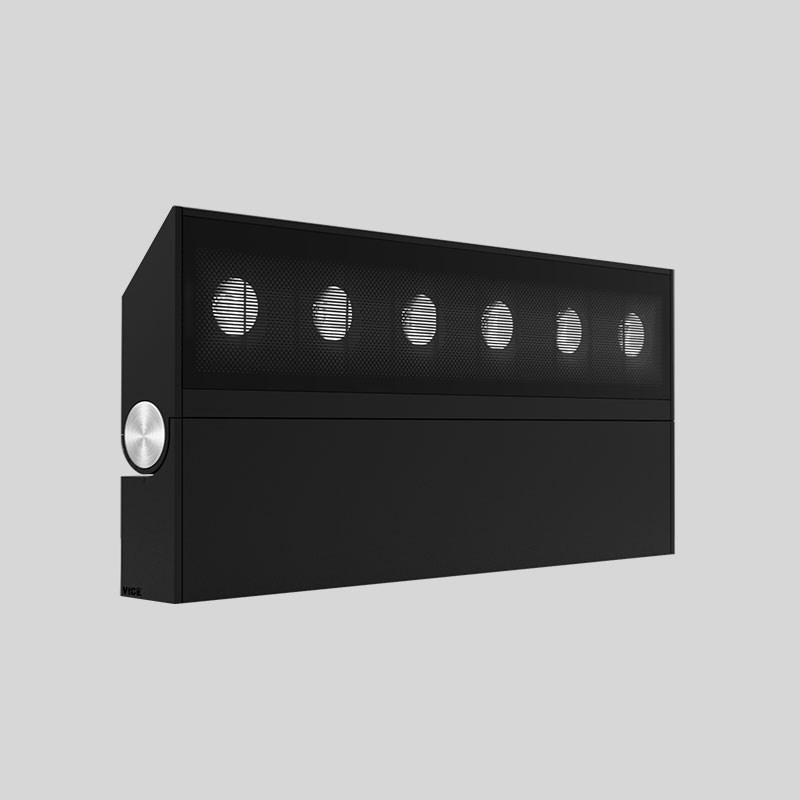

This system is available with fine mesh shield that secure glare control and conductive visual comfort.

Product Features:
• Homogeneous color mixing within one reflector
• Uniformity of 1:4
• IP 65
• Different optics serving different lighting application:
   o Wall washer
   o Wall grazer
   o Flood light
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, surface mounted on stone, concrete, metal or wood surfaces.
  • Depth of 32mm, lengths of 30cm, 60cm, and 90cm. Height is 141mm.
  • Delivered luminous output per meter from 1350lm to 3550lm.
  • Available Color temperatures (CCT): 2,200K, 2,700K - 3,000K and 4,000K.
  • Color rendering index CRI 90+.

Polar Curve
polar_curves
Medium Beam, 30° / LOR: 82%
polar_curves
Wide Beam, 45° / LOR: 65.4%
polar_curves
Elliptical beam 10° x 54° / LOR: 72%
Section Drawing
section_drawing
