Lightway 3 - Outdoor

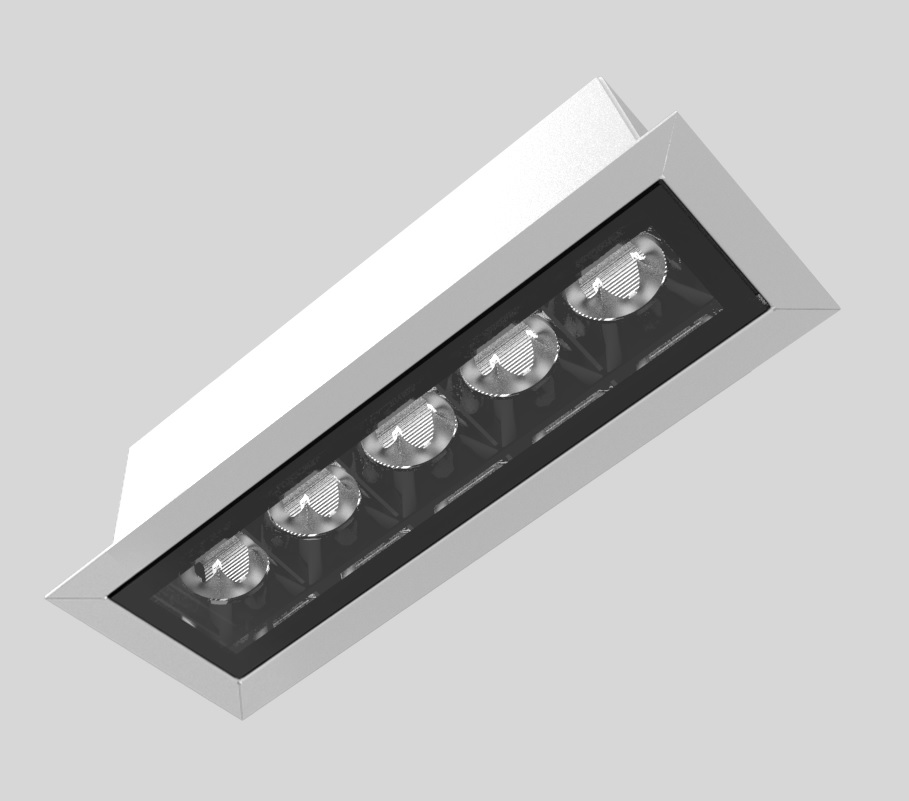

Downlight - Recessed With Trim
The downlight dash is a modern concept of glare-free downlight with square distribution. This elegant luminaire is designed to host multiple reflectors of different beam angles, generating a perfect and flawless square distribution, ideal for diverse general lighting applications.
  • Clean square light distribution from 0.98 inches round aperture reflectors. The optimal beam angle over field angle ratio offers a highly-uniform horizontal surface
  • Flexibility of mounting height with 3 beam angles
  • Homogeneous color mixing within one reflector
  • Glare-free illumination (UGR<0) for narrow beam, (UGR<9) for medium beam and (UGR<17) for wide beam
Spécifications Du Produit
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, recessed with trim in stone, metal or wood surfaces.
  • Width of 2.7 inches, height of 2.8 inches and length of either 6 inches to 12 inches.
  • Delivered luminous output from 98lm/ft to 745lm/ft.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.
  • Light emission square beam: 36°, 50° and 60°.
  • Cutout: length - 0.4 inches / width 1.9 inches / depth 2.8 inches

Courbe polaire
polar_curves
Faisceau étroit, 36° / LOR: 64%
polar_curves
Faisceau moyen, 50° / LOR: 82.3%
polar_curves
Faisceau large, 60° / LOR: 80.6%

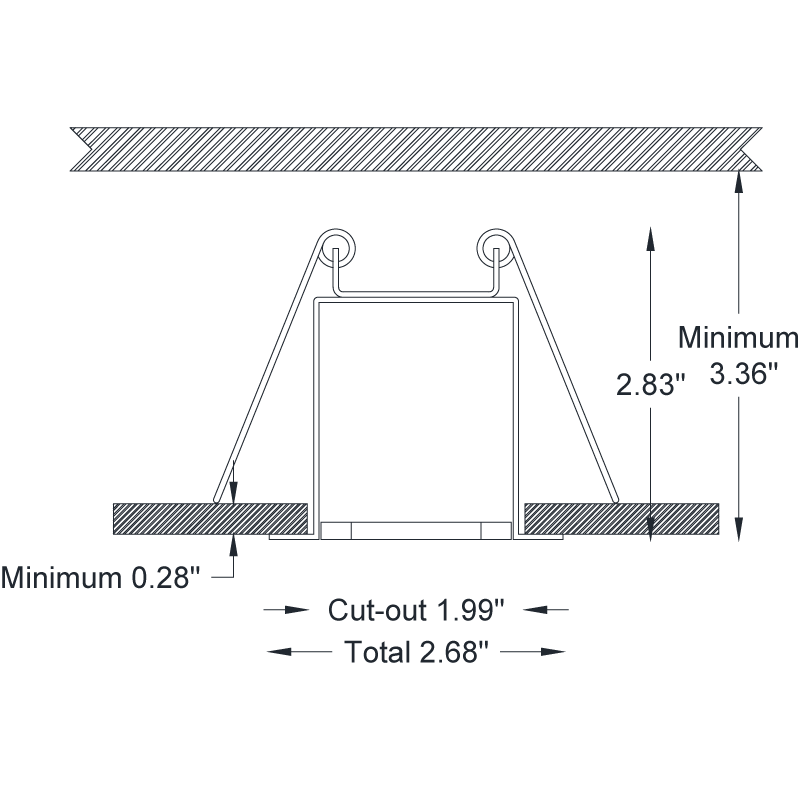

Dessin en coupe
section_drawing

Image d'application
application_image
