Lightway 3

Wall Lamp - Wall Mounted Direct
The dash wall lamp can generate a flawless square distribution ideal for various lighting applications. This luminaire combine high-quality lighting performance with minimalistic trimless design. The dash wall lamp specially-designed reflectors of complex micro-faceted surfaces ensure an even color mixing and ultimate visual comfort (glare free).
  • Clean square light distribution from 0.98 inches round aperture reflectors. The optimal beam angle over field angle ratio offers a highly-uniform horizontal surface
  • Flexibility of mounting height with 3 beam angles
  • Homogeneous color mixing within one reflector
Spécifications Du Produit
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, wall mounted on stone, concrete, metal or wood surfaces.
  • Width of 0.1ft, height of 0.2ft and length ranging from 1 To 9.8ft with an increment of 1ft.
  • Delivered luminous output from 350lm to 1800lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.
  • Light emission square beam: 36°, 50° and 60°.

Courbe polaire
polar_curves
Faisceau étroit, 36° / LOR: 70.3%
polar_curves
Faisceau moyen, 50° / LOR: 90.4%
polar_curves
Faisceau large, 60° / LOR: 88.5%

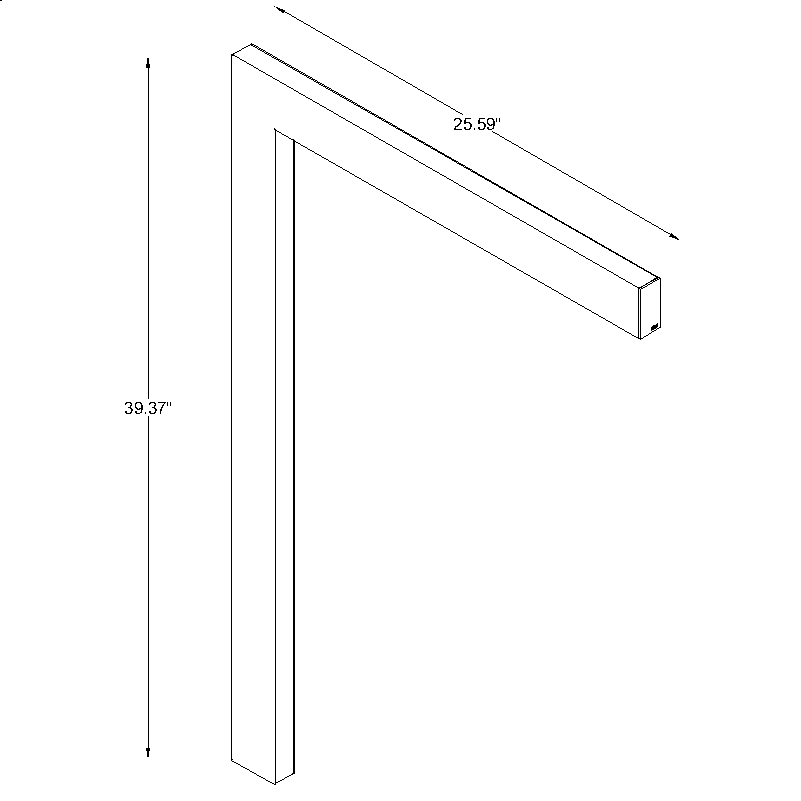

Dessin en coupe
section_drawing
