Lightway 5 - Outdoor

Grazer Beam - Extended Adjustable Bracket
Spécifications Du Produit
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, surface mounted on stone, concrete, metal or wood surfaces.
  • Width of 0.2ft, height of 0.2ft and length ranging from 1 To 3.9ft with an increment of 1ft.
  • Delivered luminous output per meter from 1200lm to 3400lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K.
  • Color rendering index CRI 90+.
  • Light emission beam: 8° and 15°.

Polar Curves
polar_curves
Beam angle 8°
polar_curves
Beam Angle 15°
polar_curves
Beam Angle 15x36°
polar_curves
Beam Angle 10x54°

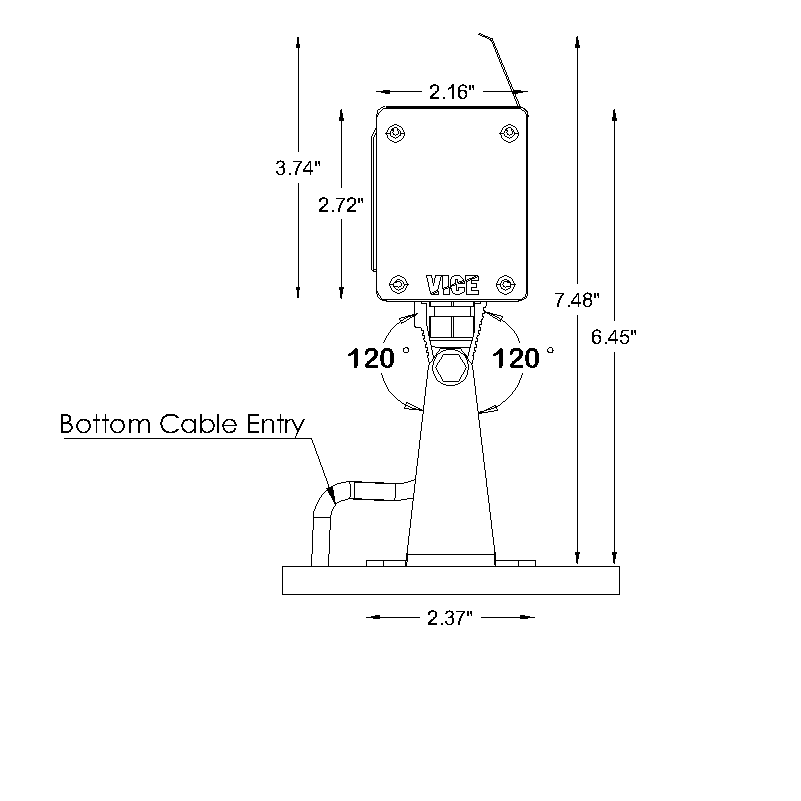

Dessin en coupe
section_drawing
section_drawing
section_drawing
section_drawing
