Lightway 6 - Outdoor

Cut-Off Washer - Wall Recessed
The Lightway 6 wall recessed Cut-Off washer is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, This IP 67 element provides homogenous distribution of light over vertical surfaces while achieving a very high output, making it ideal for stairs and hallways lighting applications.

  • True wall wash distribution. Vertical light uniformity (1:4)
  • Optimized cut-off: blocking the backward and longitudinal light spill (glarefree)
  • Homogeneous color mixing within one reflector cell
  • A minimum of 3.9 inches from side walls to prevent unwanted light spillage
Spécifications Du Produit
  • Washer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, wall recessed in stone, concrete, metal or wood surfaces.
  • Width of 0.3ft, depth of 0.34ft and lengths 0.3, 0.7 and 1ft.
  • Delivered luminous output from 35lm/ft to 311lm/ft
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K.
  • Color rendering index CRI 90+.
  • Cutout: length + 0.1 inches / width 5.3 inches / depth 4.1 inches

Polar Curves
polar_curves
Cut-Off Washer

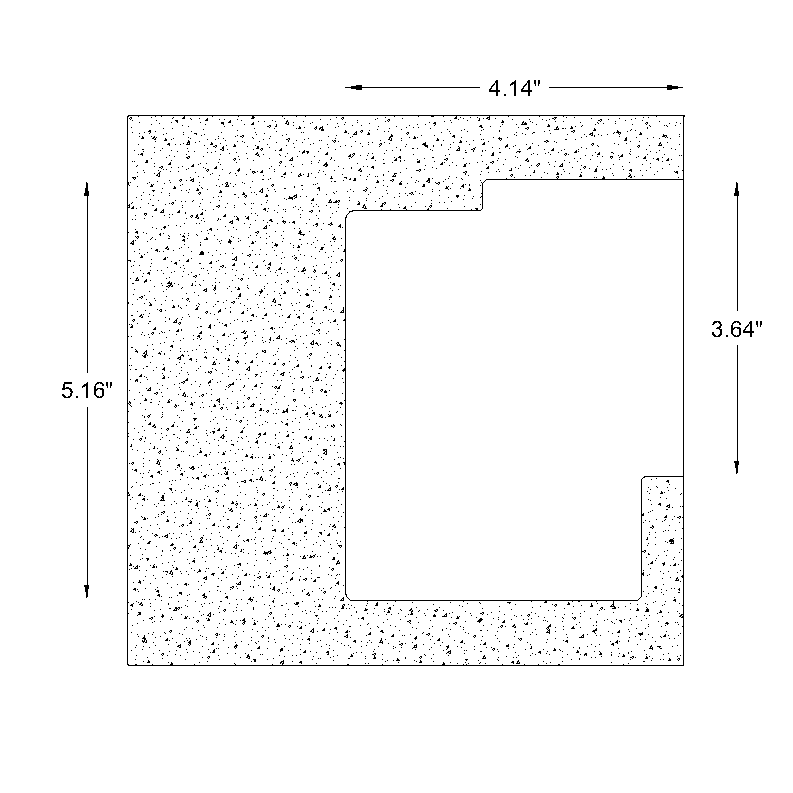

Dessin en coupe
section_drawing
