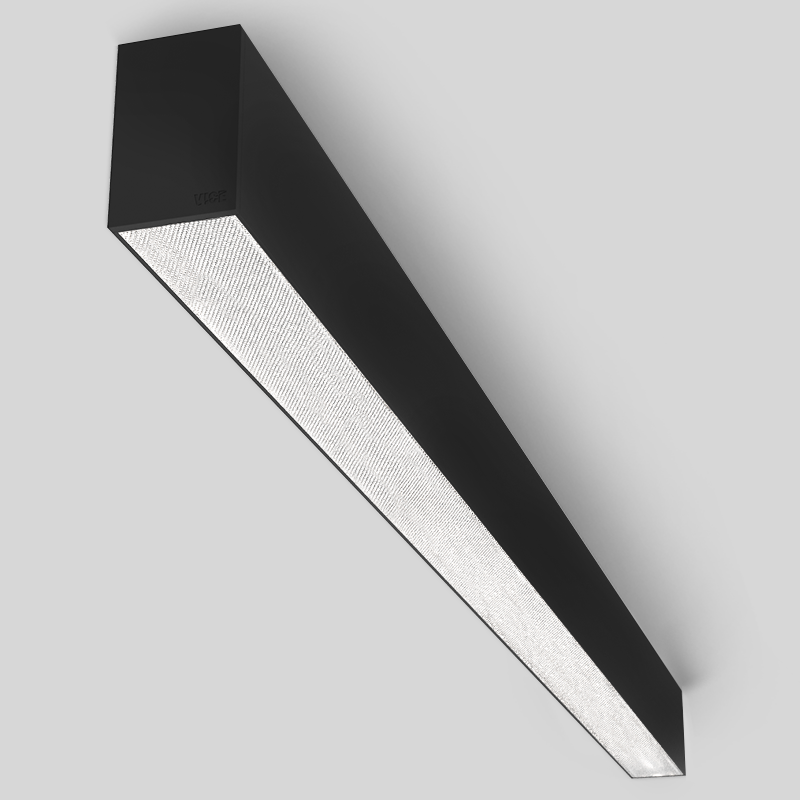

Lightway 6

Diamond Prism - Surface Mounted
The Lightway 6 Diamond-like Prism structure provides a superior vertical/horizontal illumination with glare reduction. This diffuser offers a very high light transmission making it ideal for workstations’ applications: offices, libraries, classrooms, hospitals, etc.
  • Good glare control (UGR<19 for flux < 488lm/ft). Ideal for the workplace
  • High efficiency luminaire: 70% LOR
  • Homogeneous glare reduction in all C-levels
Spécifications Du Produit
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, surface mounted on stone, concrete, metal or wood surfaces.
  • Width of 0.2ft, height of 0.3ft and length ranging from 1 To 9.8ft with an increment of 1ft.
  • Delivered luminous output per meter from 900lm to 4100lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.

Polar Curves
polar_curves
Diamond Prism
Dessin en coupe
section_drawing
