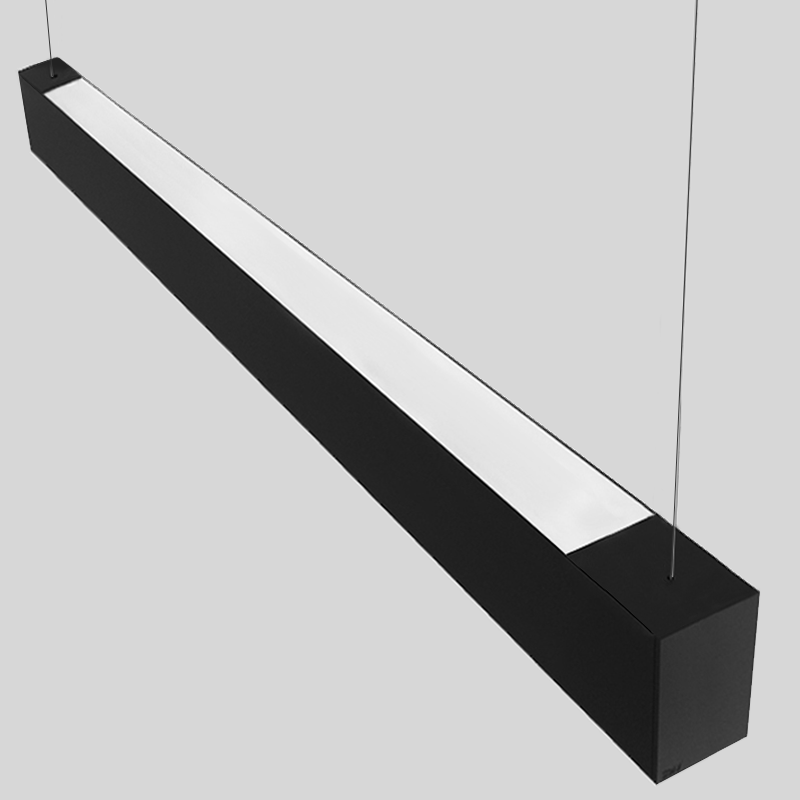

Lightway 6

Elliptical Narrow Lens - Pendant Direct / Indirect
The Lightway 6 Direct/Indirect linear system offers numerous combinations of optics and output options. A well-lit ceiling improves the look of the workspace without having to compromise on the efficiency.
The elliptical narrow lens, for direct emission, provides homogeneous vertical surface grazing and works perfectly on high vertical surfaces.
  • Wide lateral beam spread for high ceiling applications, over 157.5 inches height. Emphasizes contrast effects on textured surfaces
  • 2 To 3.9 inches from the edge of fixture to the surface of the wall
  • Install to within 17.7 inches of side walls to minimize spill
Spécifications Du Produit
  • Grazer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, pendant from stone, concrete, metal or wood surfaces.
  • Width of 0.2ft, height of 0.3ft and length ranging from 1 To 9.8ft with an increment of 1ft.
  • Delivered luminous output per meter from 1000lm to 4450lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.

Direct Courbe polaire
polar_curves
LOR: 82.3%
Courbe polaire indirecte
polar_curves
LOR: 74.8%
Dessin en coupe
section_drawing

Rapport de montage
mounting_ratio

Le retrait par rapport au mur est défini par la texture et la hauteur du mur. Consultez notre représentant des ventes pour un recul optimal selon les conditions de votre projet.
