Lightway 6 - Outdoor

Grazing Baffles - Inground Deep
The Lightway 6 Inground grazing baffles is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, this IP67 element benefits from specially-designed aluminum optics totally glare free from both the longitudinal and transversal sides of the profile, achieving a powerful effect while emphasizing rough-textured surfaces of great height.
  • Best-in-class vertical surface grazing, Scallop-free lighting from zero start point of vertical surfaces
  • Glare-free in both longitudinal and transversal sides

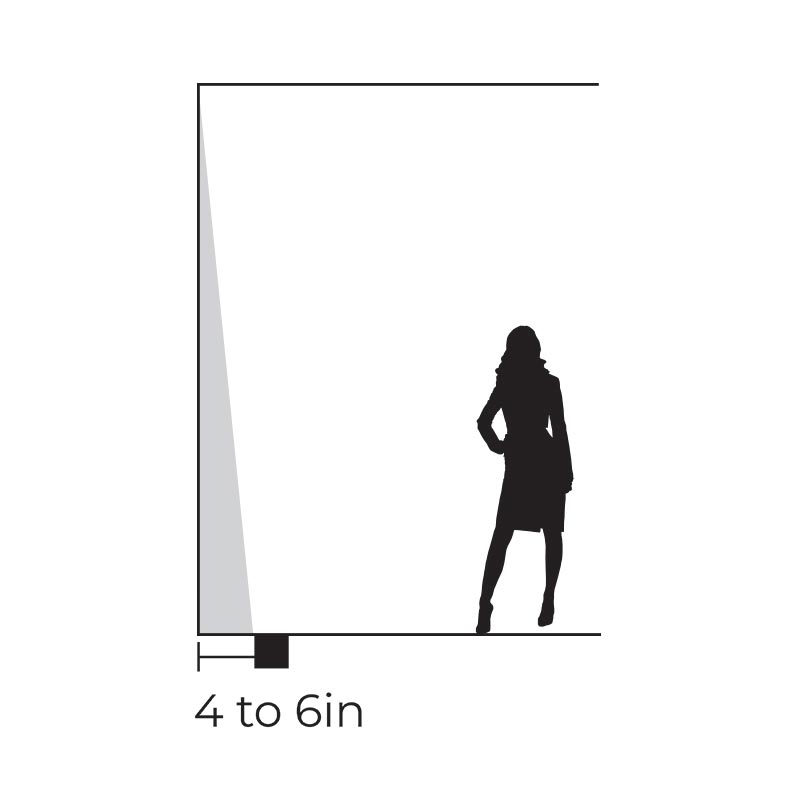

  • 2 to 3.9 inches from edge of fixture to surface of the wall depending on its height and surface. Use of continuous fixtures to within 3.9 inches of side walls
Spécifications Du Produit
  • Grazer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, recessed deep in concrete surface.
  • Width of 0.3ft, depth of 0.4ft and length ranging from 1 to 4.9ft with an increment of 1ft.
  • Delivered luminous output from 137lm/ft to 259lm/ft.
  • Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K
  • Color rendering index CRI 90+.
  • Light emission beam: 8° and 16°.
  • Cutout: length + 0.1 inches / width 3.7 inches / depth 5.3 inches

Polar Curves
polar_curves
Beam Angle 8°
polar_curves
Beam Angle 15°
Dessin en coupe
section_drawing

Rapport de montage
mounting_ratio

Le retrait par rapport au mur est défini par la texture et la hauteur du mur. Consultez notre représentant des ventes pour un recul optimal selon les conditions de votre projet.
