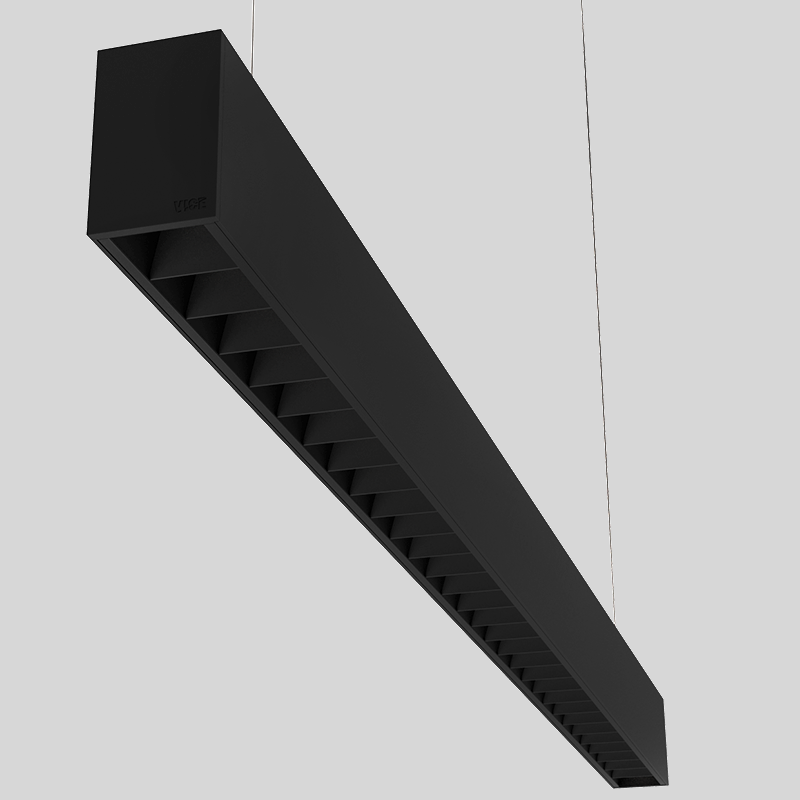

Lightway 6

Symmetrical Baffles - Pendant Direct
The Lightway 6 Symmetrical Baffles is designed as a modern replacement for the traditional baffled fluorescent linear fixtures.
The baffles offer excellent glare control and are compatible with a wide array of beam angles.
The specially-designed aluminum optics with high-power LEDs generate a powerful overall lighting effect.
  • Diverse options of beam angles: very narrow, narrow, medium, wide and elliptical
  • Excellent glare control and visual cutoff. Transversal & longitudinal shielding angle (45°)
  • Delivers High levels of light
  • Endless baffle tray colors and finish options for a decorative look
Spécifications Du Produit
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, pendant from stone, concrete, metal or wood surfaces.
  • Width of 0.2ft, height of 0.3ft and length ranging from 1 To 9.8ft with an increment of 1ft.
  • Delivered luminous output per meter from 1000lm to 3650lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.
  • Light emission beam: 30°, 45° and 15° x 36°.

Polar Curves
polar_curves
Beam Angle 15°
polar_curves
Beam Angle 30°
polar_curves
Beam Angle 45°
polar_curves
Beam Angle 15x36°
Dessin en coupe
section_drawing
