Lightway 6 - Outdoor

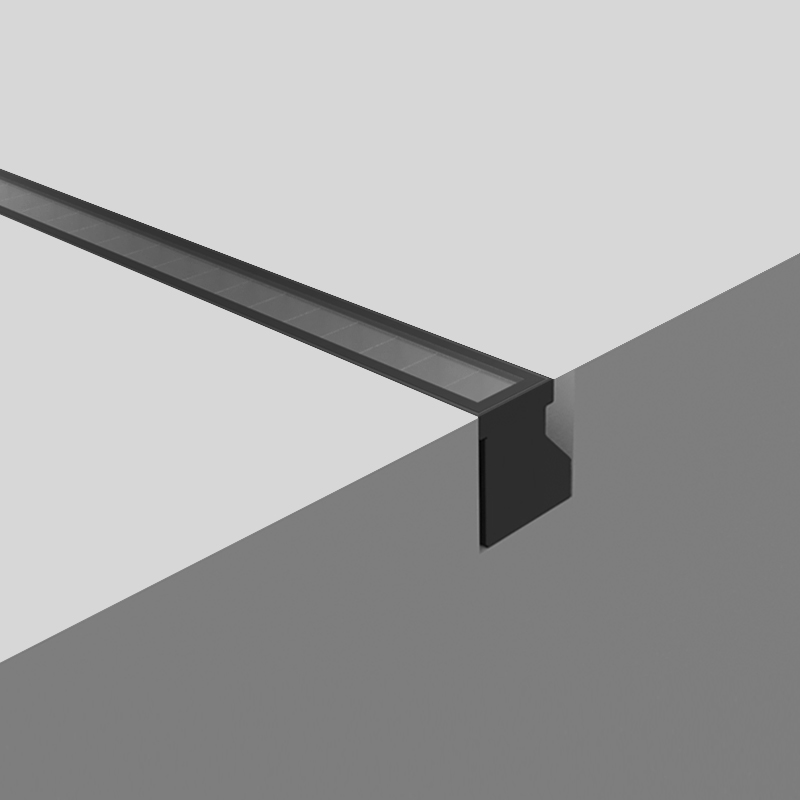

Symmetrical Baffles - Inground Shallow
The Lightway 6 Inground symmetrical baffles is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, this IP67 element benefits from a wide variety of outputs. The baffles offer excellent glare control and are compatible with a wide array of beam angles, generating a powerful overall lighting effect.
- Diverse options of beam angles: very narrow, narrow, medium, wide and elliptical
- Excellent glare control and visual cutoff. Transversal & longitudinal shielding angle (45°)
- Delivers High levels of light
Product Specifications
- Ambient lighting product with extruded aluminum body.
- Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
- Used in outdoor environments, recessed shallow in concrete surface.
- Width of 90mm, depth of 112mm and length ranging from 300 to 1500mm with an increment of 300mm.
- Delivered luminous output per meter from 1000lm to 3100lm.
- Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K
- Color rendering index CRI 90+.
- Light emission beam: 30°, 45° and 15° x 36°.
- Cutout: length + 3mm / width 117mm / depth 114.5mm.
Polar Curves
Beam angle 8°
Beam Angle 15°
Beam Angle 30°
Beam Angle 45°
Beam Angle 10x54°
Beam Angle 15x36°
Section Drawing
