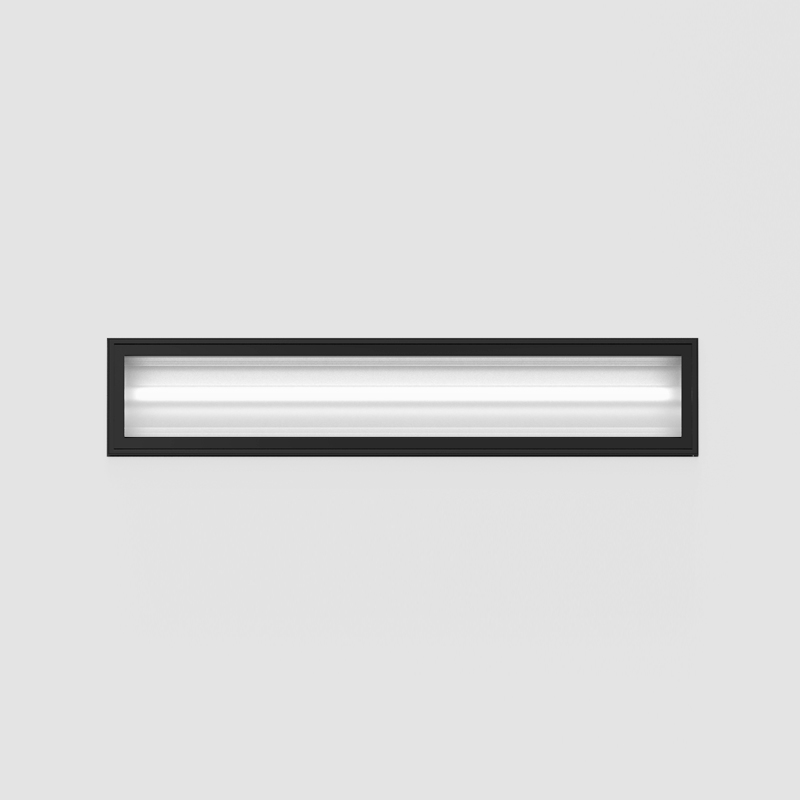

Lightway 6 - Outdoor

Asymmetrical Lens - Wall Recessed
The Lightway 6 wall recessed Asymmetrical linear lens is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, This IP 67 element provides homogenous distribution of light over vertical surfaces while achieving a very high output, making it ideal for stairs and hallways lighting applications.
• The flush lens delivers the best wall uniformity. Vertical light uniformity (1:3)
• High output, ideal for vertical surfaces (over 4 meters high lighting applications)
• Wide lateral illumination with minimal cut-off
• 45cm of side walls to minimize unwanted light spillage
• IK10

Build Your Product Spec Sheetdownload
Product Specifications
  • Washer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, wall recessed in stone, concrete, metal or wood surfaces.
  • Width of 90mm, depth of 133mm and length ranging from 300 to 1500mm with an increment of 300mm.
  • Delivered luminous output from 90lm to 570lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K.
  • Color rendering index CRI 90+.
  • IK10


Polar Curves
polar_curves
LOR: 60.83%
Section Drawing
section_drawing
