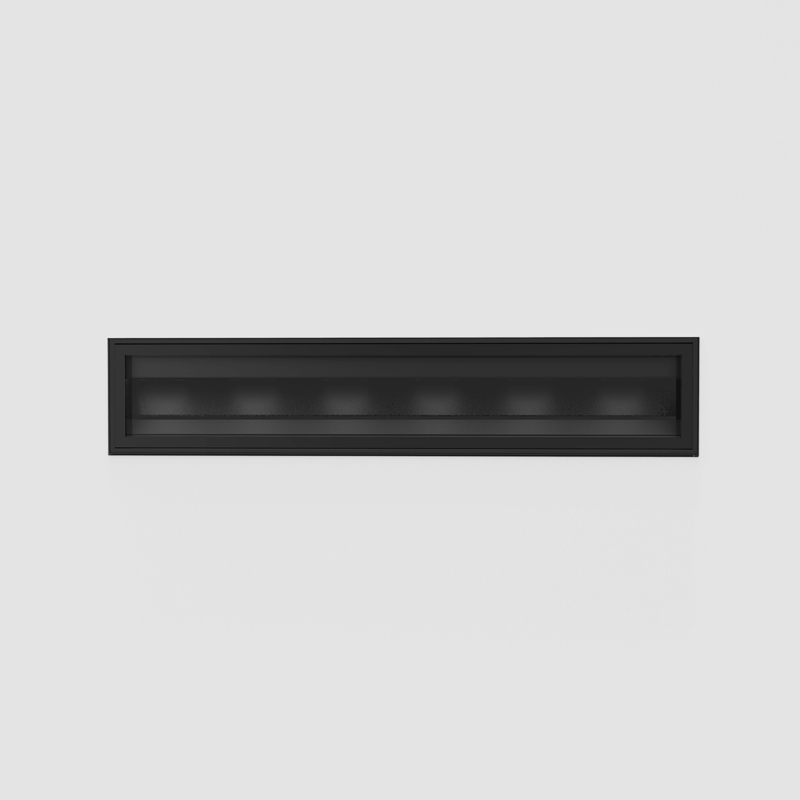

Lightway 6 - Outdoor

Cut-Off Washer - Wall Recessed
The Lightway 6 wall recessed Cut-Off washer is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, This IP 67 element provides homogenous distribution of light over vertical surfaces while achieving a very high output, making it ideal for stairs and hallways lighting applications.
• True wall wash distribution. Vertical light uniformity (1:4)
• Optimized cut-off: blocking the backward and longitudinal light spill (glarefree)
• Homogeneous color mixing within one reflector cell
• A minimum of 10 cm from side walls to prevent unwanted light spillage
• IK10

Build Your Product Spec Sheetdownload
Product Specifications
  • Washer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, wall recessed in stone, concrete, metal or wood surfaces.
  • Width of 90mm, depth of 105mm and lengths 100, 200 and 300mm.
  • Delivered luminous output from 115lm to 1020lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K.
  • Color rendering index CRI 90+.
  • IK10


Polar Curves
polar_curves
LOR: 58.85%
Section Drawing
section_drawing
