Lightway 6

Opal - Pendant Direct / Indirect
The Lightway 6 Direct/Indirect linear system offers numerous combinations of optics and output options. A well-lit ceiling improves the look of the workspace without having to compromise on the efficiency.
The PMMA opal, for direct emission, offers powerful lighting and excellent light transmission with high diffusion and homogeneity.
• Superior optical transmission with no visible LED hotspots
• Wide, even levels of illumination
• High angle distribution to illuminate adjacent walls
• Great color mixing capability
Build Your Product Spec Sheetdownload
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, pendant from stone, concrete, metal or wood surfaces.
  • Width of 66mm, height of 103mm and length ranging from 300 to 3000mm with an increment of 300mm.
  • Delivered luminous output per meter from 900lm to 4050lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.

Direct Polar Curves
polar_curves
LOR: 74.8%
Indirect Polar Curves
polar_curves
LOR: 74.8%

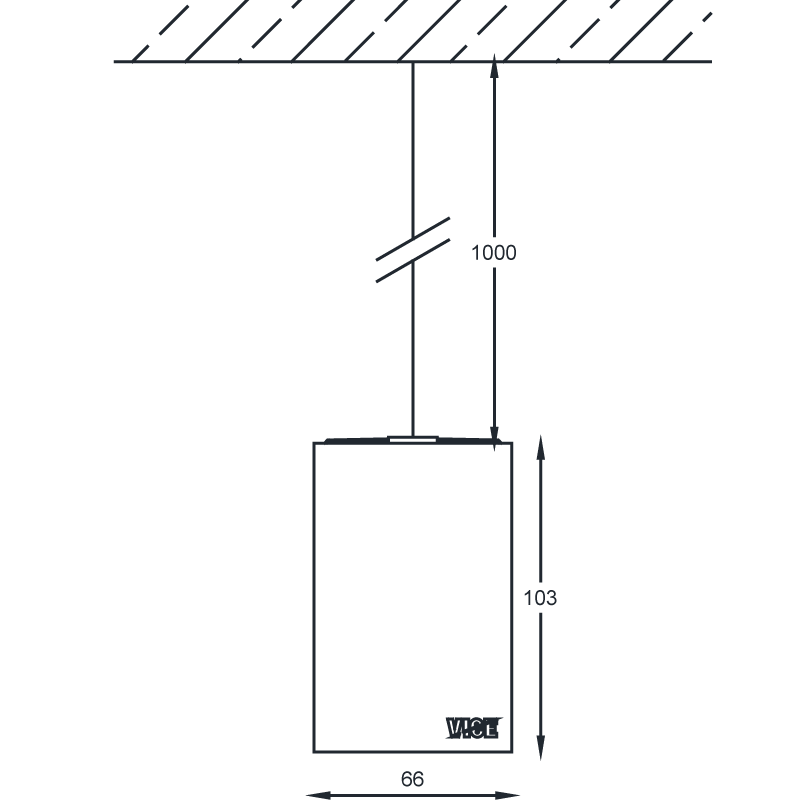

Section Drawing
section_drawing
